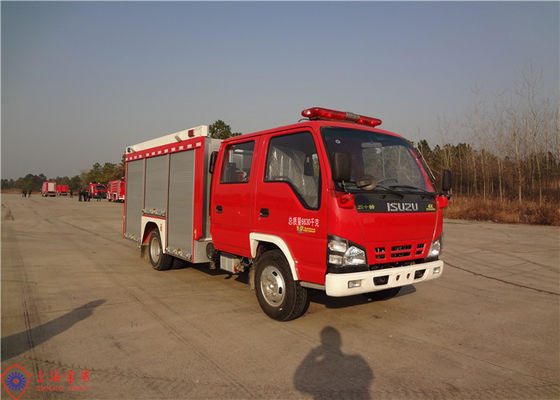

Red Painting Rear Mount Pump Water Tanker Municipal Fire Truck 2000L Water
-
Highlight
water tender fire truck
,fire pumper truck
-
Chassis BrandIsuzu
-
Dimension6255×1945×2940 (mm)
-
Gross Weight6630(kg)
-
Seat (inc. Driver)2+3
-
Wheelbase3360mm
-
Max. Power88/2900 Kw/hp
-
Tank Capacity2000L
-
Product NameMunicipal Water Tanker Fire Truck
-
Place of Originshanghai China
-
Brand NameCIMC Jindun
-
CertificationISO9001,CCC
-
Model NumberJDX5070GXFSG20/F
-
Minimum Order Quantity1 unit
-
PriceNegotiable
-
Packaging DetailsExporting standard package or customized packing
-
Delivery Time90 days after sign contract
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability350 units/year
Red Painting Rear Mount Pump Water Tanker Municipal Fire Truck 2000L Water
Red Painting Rear Mount Pump Water Tanker Municipal Fire Truck 2000L Water
Vehicle
| Dimension (L×W×H) | 6255×1945×2940 (mm) |
| Gross weight | 6630(kg) |
| Complete vehicle shipping mass | 4255 (kg) |
| Extinguishant capacity | Water: 2000L |
| Seat (inc. driver) | 2+3 |
| Max. power | 88/2900 kw/hp |
Chassis
| Manufacturer | ISUZU |
| Model | QL1070A1HWY |
| Drive type | 4x2 |
| Cab | Equipped with 3 air resporator |
| Wheelbase | 3360mm |
| Chassis net weight | 2070kg |
| Max. allowable load | 6725kg |
| Max. speed | 105km/h |
| Min. turning diameter | ＜13.6m |
| Engine type | In-line six-cylinder, four-stroke, water cooling, turbocharged engine |
| Model | 4KH1-TCG40 |
| Max. power | 88Kw/ 2900rpm/min |
| Max. torque | 290N.M/1500rpm |
| Emission standard | China IV |
| Clutch | Monolithic, dry, diaphragm spring, hydraulic control |
| Gearbox | MSB manual |
Fire pump
| PUMP Manufacturer | SHANGHAI XIONGZHEN |
| Model | CB10/30-XZ |
| Pressure/ Flow | 1.0MPa/1800L/min |
| Primer type | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤35s |
| Priming depth | ≥7 m |
Painting
Red paint: cab, body (shutter doors, except decorative strip)
White: bumper, wheel fender
