6x4 Drive Foam Fire Truck With Flat Top Metal Forward Turnover Cab Foam 2000kg

6x4 Drive Foam Fire Truck With Flat Top Metal Forward Turnover Cab Foam 2000kg

  • High Light

    fire rescue vehicles

    ,

    modern fire truck

  • Dimension
    9920×2500×3600mm
  • Gross Weight
    27550kg
  • Shipping Mass
    14900kg
  • Seat (inc. Driver)
    6
  • Max. Power
    276km
  • Wheelbase
    4325+1350mm
  • Place of Origin
    shanghai China
  • Brand Name
    HOWO
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5280GXFPM120/H
  • Minimum Order Quantity
    1unit
  • Price
    negotiable
  • Delivery Time
    90days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram

6x4 Drive Foam Fire Truck With Flat Top Metal Forward Turnover Cab Foam 2000kg

6x4 Drive Type Foam Fire Truck With Flat Top Metal Forward Turnover Cab Foam 2000kg



Vehicle

Dimension (L×W×H) 9920×2500×3600mm
Gross weight 27550kg
Complete vehicle shipping mass 14900kg
Seat (inc. driver) 6
Max. power 276kw

Chassis

Manufacturer Sinotruk HOWO
Model ZZ5347V4347D5
Drive type 6x4
Cab Flattop metal forward turnover
Wheelbase 4325+1350mm
Max. speed 90km/h
Min. turning diameter <22m
Approach angle 16°
Departure angle 12°

Liquid tank

Capacity Water: 10000kg Foam: 2000kg
Material 304 high quality corrosion resistant plate
Structure Total side girder
Device

2 ingates

1 overflow device

2 liquid level sensor

2 DN50 drain outlet with valve

4 filling pipe end

Conform to rule GA39.4-92

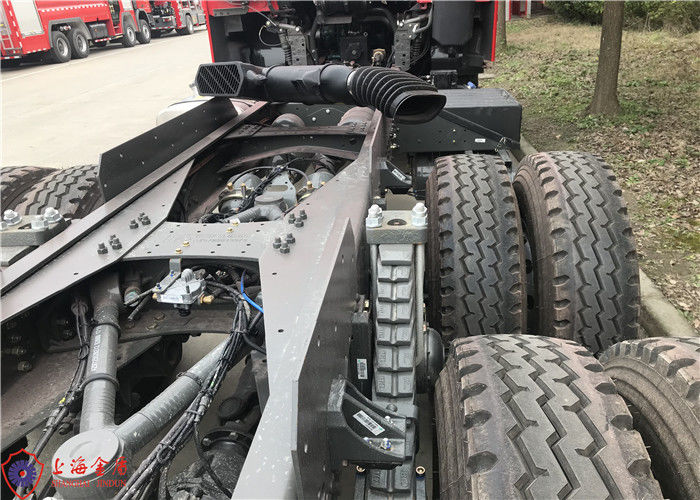

Side girder

Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.

Dash board and on-board equipment

Cab PTO gear switch

Pump room

Function switch lighting, water outlet, water injection, liquid outlet, monitor shot
Dash board Pressure gauge, Water gauge, vacuum gauge, content gauge, tachometer
