Diesel Fuel Engine Emission 3760ml FOTON Light Duty Wrecker 85kw

Good quality Light Fire Truck for sales
I'm Online Chat Now

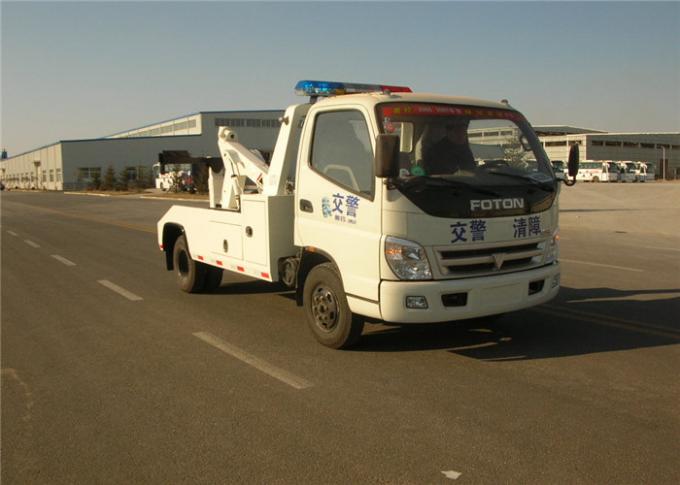

Diesel Fuel Engine Emission 3760ml FOTON Light Duty Wrecker 85kw

China Diesel Fuel Engine Emission 3760ml FOTON Light Duty Wrecker 85kw supplier
Diesel Fuel Engine Emission 3760ml FOTON Light Duty Wrecker 85kw supplier Diesel Fuel Engine Emission 3760ml FOTON Light Duty Wrecker 85kw supplier

Large Image :  Diesel Fuel Engine Emission 3760ml FOTON Light Duty Wrecker 85kw

Product Details:

Place of Origin: China
Brand Name: KaiFan
Certification: IQNET,ISO
Model Number: KFM5071TQZ13P –SQZ1503PO

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Delivery Time: 3months
Payment Terms: T/T
Supply Ability: 300/year
Contact Now
Detailed Product Description
Grade Ability: 30% Max. Speed: 95(km/h)
Engine Model: CA4DC2-12E3 Persons: 3
Engine Emission: 3760ml Wind Force: ≤8degree

Diesel fuel Engine emission 3760ml KaiFan Light-duty P Series (FOTON) Road Wrecker 85kw rated power


A,Working Condition
1,Altitude: 0-4500m
2,Temperature: -35℃--+45℃
3,Relative humidity: 80%
4,Wind force: ≤8degree

B,Working Range
KFM5071TQZ13P Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind

C,Main Parameters

ItemsUnitValue
Boom StructureRated towing weightkg7400
Max. Lifting weightkg1500
Max. Lifting weight of full extending boomkg800
Effective length of boommm1928
Extension traveling of boommm1200
Elevation of boom (upper/ lower)°7~-10
Platform StructureMin. Elevation of full extending platform°11
Max. Loading of platformkg3000
External dimension of platform (length×width×height)mm5200×2120×57
Ground clearance of cage floormm1041
Max. Pulling power of winchkg4000
Dia. Of steel cablemm10
Length of steel cablem25
Min. Speed of steel cablem/min2.5



Vehicle
Parameters

External dimensionmm7555×2200×2560
Chassis model BJ1071VCJFA-S
Drive 4×2
Axle basemm3800
The whole weight of empty loadkg4595
Load of front axle of empty loadkg1815
Load of rear axle of empty loadkg2780
The whole weight of full loadkg7495
Load of front axle of full loadkg2850
Load of rear axle of full loadkg4645
Wheel base (front/rear axle)mm1685/1600
Front suspensionmm1120
Rear suspensionmm2220
Approach angleº22
Departure angleº8
Max. Speedkm/h95
Max. Grade ability%≥28
Min. Turning diameterm≤16
Min. Ground clearancemm190
Engine model-CA4DC2-12E3
Rated powerkw/r/min88/3200
Engine emissionml3168
Max. Torquen·m/r/min320/1900-2100
Fuel type Diesel
Standard of emission EN III
Tire size 7.50-16,8.25-16
Persons 3
Optional EngineEngine model YZ4DB1-30
Rated powerkw95
Engine emissionml4087
Engine model CY4102-C3C
Rated powerkw88
Engine emissionml3856
Engine model YN38CR
Rated powerkw85
Engine emissionml3760
Diesel Fuel Engine Emission 3760ml FOTON Light Duty Wrecker 85kw
