Volvo Chassis 2 Persons Diesel Fuel Road Wrecker Truck , 25% Max. Grade Ability

Good quality Light Fire Truck for sales
I'm Online Chat Now

Volvo Chassis 2 Persons Diesel Fuel Road Wrecker Truck , 25% Max. Grade Ability

China Volvo Chassis 2 Persons Diesel Fuel Road Wrecker Truck , 25% Max. Grade Ability supplier
Volvo Chassis 2 Persons Diesel Fuel Road Wrecker Truck , 25% Max. Grade Ability supplier Volvo Chassis 2 Persons Diesel Fuel Road Wrecker Truck , 25% Max. Grade Ability supplier

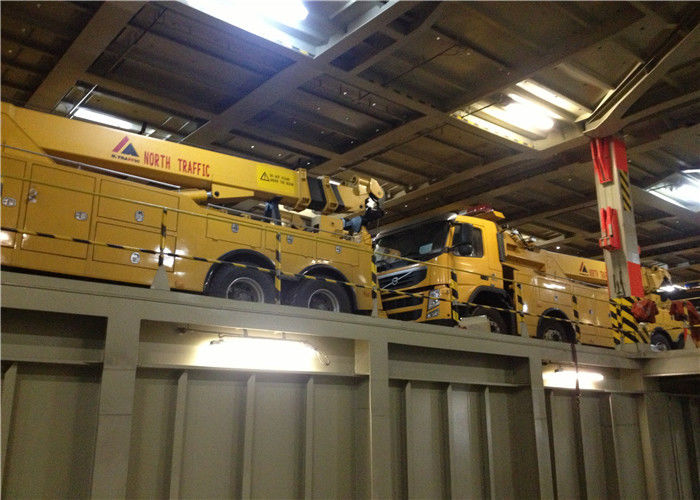

Large Image :  Volvo Chassis 2 Persons Diesel Fuel Road Wrecker Truck , 25% Max. Grade Ability

Product Details:

Place of Origin: China
Brand Name: KaiFan
Certification: IQNET,ISO
Model Number: KFM5071TQZ13P –SQZ1503PO

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Delivery Time: 3months
Payment Terms: T/T
Supply Ability: 300/year
Contact Now
Detailed Product Description
Altitude: 0-4500m Temperature: -35℃--+45℃
Grade Ability: 30% Engine Model: D13
Persons: 2 Tire Size: 315/80R22.5

D13 Engine model 25% Max. Grade ability Heavy-duty H Series volvo chassis Road Wrecker 2 persons Diesel Fuel Heavy-duty





1,Standard Equipments

1. VOLVO FM440 104RB

2. Main boom structure assembly

3. Vice boom assembly

4. Hanging hook assembly

5. Control structure assembly

6. Chain wheel and hanging assembly

7. Winch assembly (include winch clutch, impaction device)

8. Steel body assembly

9. Tool box assembly

10. Light stands assembly

11. Alarm device

12. Hydraulic system

2,Working Range

KFM5540TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind





3,Main Parameters

Items Unit Value
Lifting Structure Rated Lifting weight kg 15815
Max. Lifting weight of original place kg 35000
Max. Lifting weight of full extension boom kg 12500
Rated towing weight kg 54000
Max. Designed towing weight kg 80000
Effective length of boom m 3670
Extension traveling of boom m 1850
Folding angle of boom ° 90
Under lift Structure Max. Rated hanging weight kg 40000
The height from hook to the ground mm 13500
Max. Extension traveling of lifting boom mm 6000
Rotation angle ° 360
Numbers of winch piece 2
Rated pulling power of winch kg 25000
Dia. Of steel cable mm 26
Length of steel cable m 45
Min. Speed of steel cable m/min 4
Rotation angle ° 65

Vehicle

Parameters

External dimension mm 11342×2500×3710
Chassis model   FM440 104RB
Drive   10×4
Axle base mm 1995+2805+1400+1370
The whole weight of empty load kg 38055
Load of front axle of empty load kg 16885
Load of rear axle of empty load kg 21170
The whole weight of full load kg 54000
Load of front axle of full load kg 9000
Load of rear axle of full load kg 10000/13000
Wheel base (front/rear axle) mm 2029/1875
Front suspension mm 1362
Rear suspension mm 1750
Approach angle º 16.6
Departure angle º 20
Min. Turning diameter m 27.2
Min. Ground clearance mm 306
Max. Speed km/h 90
Max. Grade ability % 25
Gas consumption per one hundred miles(diesel oil) L 42.9
Engine model - D13
Engine emission L 12.8
Rated power kw/r/min 440/324/1400~1800
Torque n·m/r/min 2200/1050~1400
Volvo Chassis 2 Persons Diesel Fuel Road Wrecker Truck , 25% Max. Grade Ability
