16.6 Degree Approach Angle Wheel Lift Tow Truck 27.2 Meters Min Turning Diameter

Good quality Light Fire Truck for sales
I'm Online Chat Now

16.6 Degree Approach Angle Wheel Lift Tow Truck 27.2 Meters Min Turning Diameter

China 16.6 Degree Approach Angle Wheel Lift Tow Truck 27.2 Meters Min Turning Diameter supplier
16.6 Degree Approach Angle Wheel Lift Tow Truck 27.2 Meters Min Turning Diameter supplier 16.6 Degree Approach Angle Wheel Lift Tow Truck 27.2 Meters Min Turning Diameter supplier

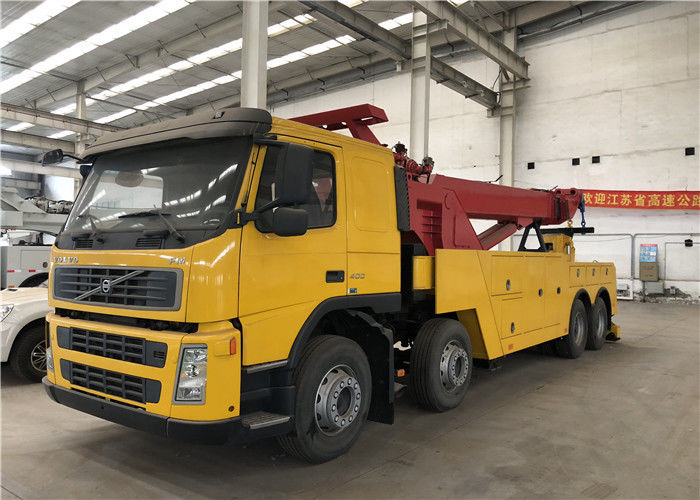

Large Image :  16.6 Degree Approach Angle Wheel Lift Tow Truck 27.2 Meters Min Turning Diameter

Product Details:

Place of Origin: China
Brand Name: Young da
Certification: IQNET,ISO
Model Number: KFM5540TQZ–SQZ3554HV

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Delivery Time: 3months
Payment Terms: T/T
Supply Ability: 300/year
Contact Now
Detailed Product Description
Altitude: 0-4500m Temperature: -35℃--+45℃
Grade Ability: 30% Engine Model: D13
Persons: 2 Tire Size: 315/80R22.5
Rotation Angle: 360 Winch: 2 Pieces

Max. Extension traveling of lifting boom 6000mm VOLVO Road Wrecker 2 pieces of winch





1/Main Parameters

ItemsUnitValue
Lifting StructureRated Lifting weightkg15815
Max. Lifting weight of original placekg35000
Max. Lifting weight of full extension boomkg12500
Rated towing weightkg54000
Max. Designed towing weightkg80000
Effective length of boomm3670
Extension traveling of boomm1850
Folding angle of boom°90
Under lift StructureMax. Rated hanging weightkg40000
The height from hook to the groundmm13500
Max. Extension traveling of lifting boommm6000
Rotation angle°360
Numbers of winchpiece2
Rated pulling power of winchkg25000
Dia. Of steel cablemm26
Length of steel cablem45
Min. Speed of steel cablem/min4
Rotation angle°65

Vehicle
Parameters

External dimensionmm11342×2500×3710
Chassis model FM440 104RB
Drive 10×4
Axle basemm1995+2805+1400+1370
The whole weight of empty loadkg38055
Load of front axle of empty loadkg16885
Load of rear axle of empty loadkg21170
The whole weight of full loadkg54000
Load of front axle of full loadkg9000
Load of rear axle of full loadkg10000/13000
Wheel base (front/rear axle)mm2029/1875
Front suspensionmm1362
Rear suspensionmm1750
Approach angleº16.6
Departure angleº20
Min. Turning diameterm27.2
Min. Ground clearancemm306
Max. Speedkm/h90
Max. Grade ability%25
Gas consumption per one hundred miles(diesel oil)L42.9
Engine model-D13



2/Standard Equipments
1. VOLVO FM440 104RB

2. Main boom structure assembly

3. Vice boom assembly

4. Hanging hook assembly

5. Control structure assembly

6. Chain wheel and hanging assembly

7. Winch assembly (include winch clutch, impaction device)

8. Steel body assembly

9. Tool box assembly

10. Light stands assembly

11. Alarm device

12. Hydraulic system

13. Hydraulic system over voltage protection device

14. Electric system

15. PTO Warner

16. Combination lamps

17. Hydraulic duel rear outrigger assembly

18. Lifting assembly

19. Y wheel lift

20. Steel wire rope

21. Output of electronic device

22. Standard spare tire

23. Safety chains

24. Vulnerable parts attachment



3/Working Range
KFM5540TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
