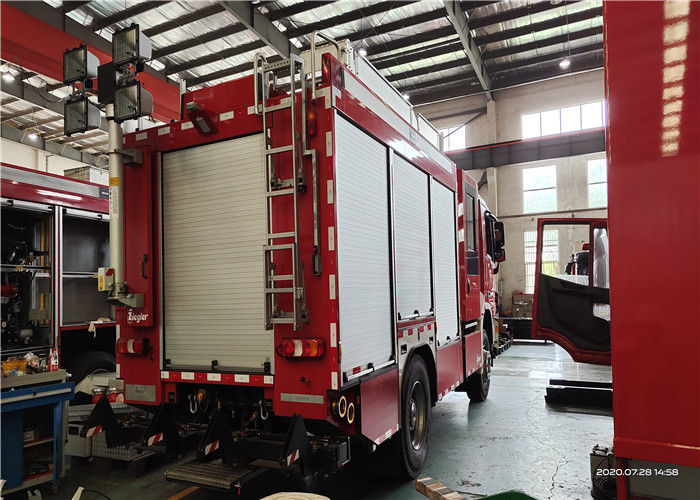

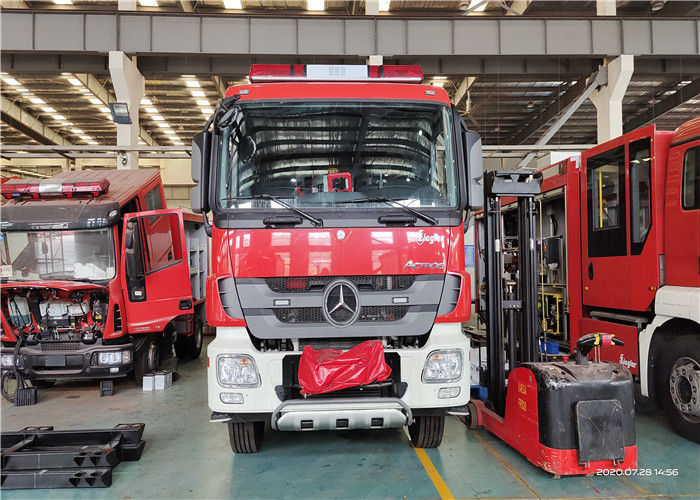

4x2 Gasoline Emergency Fire and Rescure Truck with 6 Crew seats 12250 KG Vehicle Kerb Mass
Generator:
- Model: Gasoline generator ET12000 (Honda power)
- Rated output power(kVA): 10(Three-phase),2.7kVA×3(Single-phase)
- Maximum output power(kVA): 11(Three-phase),3.0kVA×3(Single-phase)
- Power factor: 0.8
- Voltage(V): 380/220
- Electric current(A): 11.6A×3(Single-phase),14.4A
- Frequency(HZ): 50
- Fuel: Gasoline
- Continuous working time(hr): 6.5
- Lifting lighting system:
- Manufacturer: Zhejiang SENKEN
- Model: SG 65-41000G
- Lifting height: 6.5M
- AGL: ≥7.6m
- Control system voltage: DC24V
- Lamp voltage: 220V
- Lamp power: 4 × 1000W
- Lamps horizontal rotation angle: 380 °
- Lamps vertical rotation angle: 330 °
- Lamp luminous flux: 220000lm
Side girder Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
