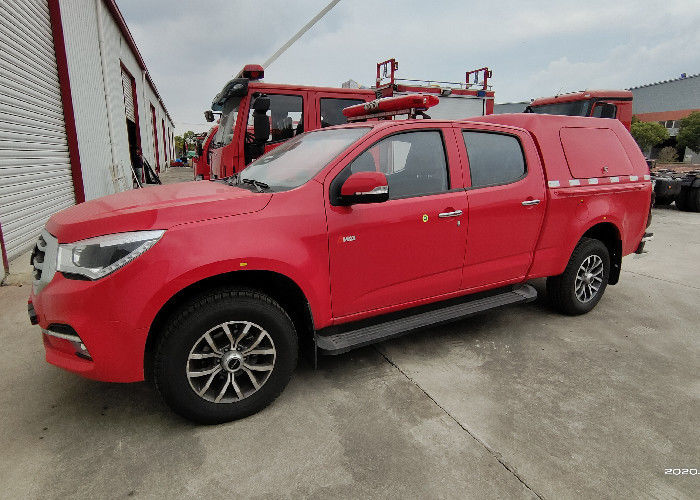

4 Cylinders Pressuring Air Intercool Pickup Fire Truck Water Mist System 30m Hose Reel
⑵ Engine | |
Engine model: | Commins ISF2.8s4161P |
Engine type: | 4 cylinders, pressuring air intercool, EGR+DOC |
Max. power rotate speed (rpm): | 3600 |
Max. torque rotate speed (rpm): | 1800-3000 |
Max. HP: | 161 |
Displacement mL: | 2780 |
Cylinders: | 4 |
Gears: | 5 |
Fuel type: | Diesel |
Emission standard: | China 4 |
Tyre type: | 245/70R16 |
(3)Cab | |
Structure | Original cab |
Seat | 1+1+3 |
Equipment | operation board, siren |

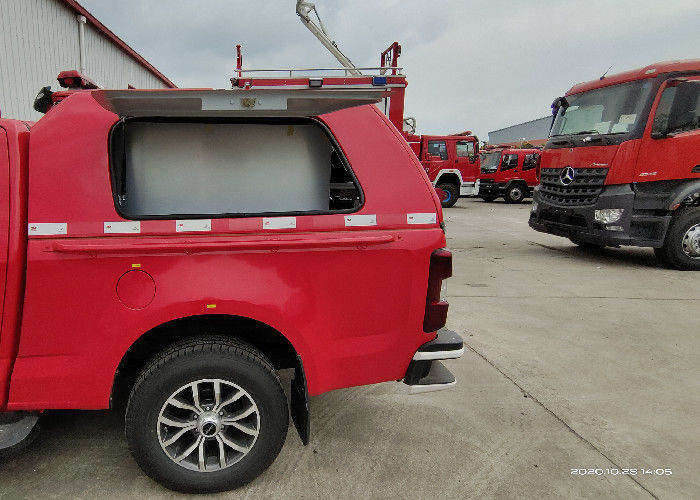

(4)Storage compartment | |
Manufacturer | Shanghai Jindun |
Material | aluminium alloy |
Structure | The inner frame is made of aluminium alloy, and checkered plate |
Inner structure | Maximize the space utilization and variability |
Seal | Mechanical seal |
Water tank | |
Steel-made tank capacity | 300L |
Storage apartment overall | 1500X1500X1050mm |
⑻High pressure water mist fire fighting unit:
Model:JYCC1515E
Pressure:15MPa
Flow rate:15L/min
⑼Electric system
⑽Painting
Bright red:body
⑾Overall technical requirements
All operating switch instrument equipment and vehicles have the name plate & logo compliance with Requirements
The vehicle performance in accordance with GB7956 Fire performance requirements and test methods for vehicle
Foam tank in accordance with GA39.5-92 Foam fire truck technical conditions
The vehicle appearance is nice, flatness in accordance with GA39.5-92 ”Foam fire truck technical conditions”
All the parts are welded firmly, Grind after weld.
⑿Additional documents
1. The chassis operation manual
2. The chassis quality assurance manual
3. The chassis quality certificate
4. The chassis VIN number copy.
5. Engine number copy
6. The accessory tools list of the chassis
7. The fire fighting truck quality certificate
8. The fire fighting truck specification
9. The accessory equipment list of the fire fighting truck
10. The fire fighting truck hand-over list
