44m Height High Rescue Municipal Aerial Ladder Fire Truck contains Two Seats

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

44m Height High Rescue Municipal Aerial Ladder Fire Truck contains Two Seats

44m Height High Rescue Municipal Aerial Ladder Fire Truck contains Two Seats
44m Height High Rescue Municipal Aerial Ladder Fire Truck contains Two Seats
video play

Large Image :  44m Height High Rescue Municipal Aerial Ladder Fire Truck contains Two Seats

Product Details:
Place of Origin: Shanghai,China
Brand Name: MAN or SINOTRUK HOWO ( customized)
Certification: ISO9001,CCCF, TUV, SGS, SCONCAP, PC
Model Number: DG44
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Factory price, Negotiable
Packaging Details: Exporting standard package or customized packing
Delivery Time: 7 months
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 unit
Detailed Product Description
Cabin: Original Single Cab Wheelbase: 4500+1350 Mm
Working Radius: 20m Generator Battery: 12Vx2
Driving: 6x4 Drive Outrigger Qty: Four Legs/feet
Max Speed: 90km/h Pump Flow Rate: 70L/s 1.7Mpa
Product Name: High Rescue Aerial Ladder Fire Truck
High Light:

Foam 2000kg Aerial Ladder Fire Truck

,

Water 5000kg Aerial Ladder Fire Truck

,

2 Seat heavy rescue fire truck

44m Height High Rescue and Low Fire Fighting Municipal Aerial Ladder Fire Truck contains Two Seats



This product combines high rescue and low fire fighting functions, which is a new generation of fire truck products.

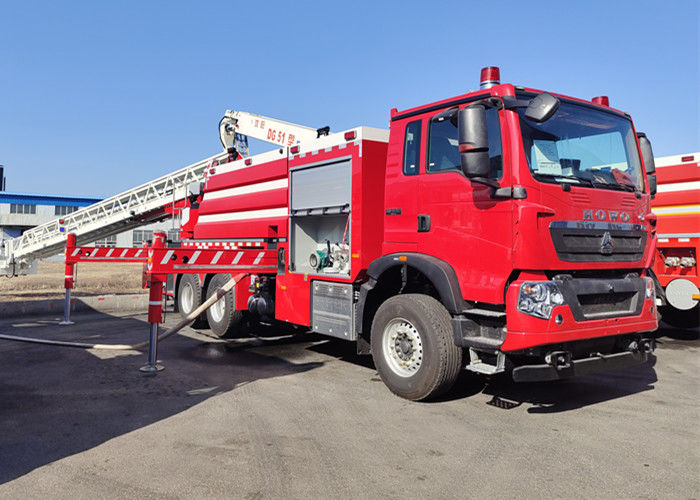

44m Height High Rescue Municipal Aerial Ladder Fire Truck contains Two Seats 0

Vehicle



Dimension (L×W×H) 10500×2500×3980 (mm)
Gross weight 32100 (kg)
Complete vehicle shipping mass 31950(kg)
Seat (inc. driver) 2
Engine Power 320/435(kw/hp)

Chassis





Manufacturer Mercedes Benz
Model Actros3344
Driving 6×4
Cabin Single cab
Wheel base 4500+1350 (mm)
Net weight 9230Kg
Max. loading 23700Kg
Max. running speed 90Km/h
Min. turning diameter <22.3m
Engine type V type, 6 cylinder in line turbo, middle cool engine
Model Mercedes OM501 LA
Max. engine power 320Kw/ 1800r/min
Maximum torque 2100N.M/1080rpm
Emission standard Euro V
Clutch Monolithic, Dry
Transmission

Mercedes G240-16

fully synchronized

Full power PTO



NMV200(N56)i=1.48(speedup), Full power

PTO of transmission



MB-NA121-1b(N04)i=1.03/1.24 (speed up)

Boom Structure



Main boom + four telescopic booms + one folding boom, welded with HG70 high-strength steel
Max. working height 44m
Max. working range 21m
Main boom action angle -3°~83°
Folding boom action angle 0°~180°
Turntable slewing Infinite rotation 360°
Rated Pump flow 70L/s@1.7Mpa
Boom extending time ≤140s
Outrigger extending time ≤35s
Hydraulic system pressure 21MPa
Max. wind velocity 12.5m/s
Outrigger longitudinal and transverse 5600×5300mm
Fire fighting system

Fire-fighting performance data



Range(water/ foam) ≥70/60m
Foam proportioner 6%(manual adjustment)



Onboard documents:

3.1 Vehicle certification

3.2 Import declaration certificate

3.3 Automatic import licensing

3.4 3C Certification

3.5 Chassis operation and maintenance manual

3.6 Chassis quality warranty card

3.7 Chassis certificate

3.8 Engine code rubbing member

3.9 Chassis code rubbing member

3.10 Vehicle operation and maintenance manual

3.11 Fire equipment list

3.12 Follow-up service card

3.13 Hand-over list

3.14 Fire truck certificate



44m Height High Rescue Municipal Aerial Ladder Fire Truck contains Two Seats 1



FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.



2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.



3. Q:What's your payment method?

A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
