250kw Aerial Ladder Fire Truck 400L Iron Tank 6x4 Drive Model

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

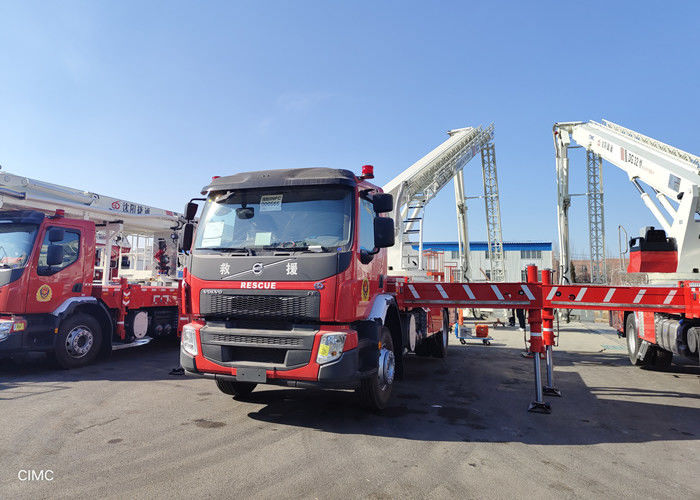

250kw Aerial Ladder Fire Truck 400L Iron Tank 6x4 Drive Model

250kw Aerial Ladder Fire Truck 400L Iron Tank 6x4 Drive Model
250kw Aerial Ladder Fire Truck 400L Iron Tank 6x4 Drive Model
video play

Large Image :  250kw Aerial Ladder Fire Truck 400L Iron Tank 6x4 Drive Model

Product Details:
Place of Origin: SHANGHAI,CHINA
Brand Name: JD CIMC
Certification: ISO9001,CCCF, TUV, SGS, SCONCAP, PC
Model Number: DG32
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Factory price, Negotiable
Packaging Details: Exporting standard package or customized packing
Delivery Time: 3 months
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 360 units
Detailed Product Description
Seats: 4+2 Engine Power: 250Kw
Wheelbase: 4800+1450 Mm Working Radius: 32m
Generator Battery: 12Vx2 Clutch: Monolithic Dry
Driving: 6x4 Net Weight: 9230Kg
Max. Loading: 23700Kg Water/foam Capacity: 2000/1500L
Product Name: Aerial Ladder Fire Truck
High Light:

400L Aerial Ladder Fire Truck

,

6x4 Aerial Ladder Fire Truck

,

250kw 6x4 truck

250kw Engine Power Aerial Platform Fire Truck 400L Iron Tank 6x4 Drive Model



Product advantages

The most advanced hydraulic pilot and electro-hydraulic proportional control system are adopted to make the arm frame move more stable and more safe and reliable.

1. The use of variable displacement pump ensures the stability of hydraulic system. In the operation of boom, the hydraulic oil pump can automatically determine the oil supply quantity according to the amount of oil required by the boom operation. In this way, the oil temperature of hydraulic system is not only prevented, but also the stability of the boom operation is guaranteed.



250kw Aerial Ladder Fire Truck 400L Iron Tank 6x4 Drive Model 0





Vehicle

1.1 Maximum working height (m): 32

1.2 Maximum working radius (m): 16

1.3 Maximum bearing weight of working bucket (kg): 400

1.4 Liquid carrying capacity (water / foam) (L): 2000/1500

1.5 Engine power (kw): 250

1.6 Overall dimension: length × width × height (mm) 10800 × 2500 × 3850mm

Chassis

2.1 Model: Beiben 2534 (to be determined)

2.2 Driving mode: 6 × 4

2.3 Wheelbase (mm) (full load): 4800 + 1450

(to be determined)

2.4 Exhaust emission: National Three

Engine:

2.5.1 Type: in line, water cooled, supercharged, intercooled, six cylinder

2.5.2 Cylinder diameter × stroke: 126 × 130

2.5.3 Displacement (L) 9.726

2.5.4 rated power (kW / RPM): 250 / 2200

2.5.5 Maximum torque (nm / RPM): 1350 / 1200 ~ 1600

2.5.6 Fuel consumption (g / kW. H): 210

2.5.7 Tropical thermostat 76 ℃, silicone oil clutch fan

Steering gear

2.8.1 Model: right ZF8098

2.8.2 Form: hydraulic power

Main technical parameters of upper part:

Outrigger Structural style H type
Longitudinal span 7250mm
Horizontal span 5800mm
Outrigger leveling method Automatic leveling
Boom (ladder) frame form Three-section synchronous telescopic boom + folding boom
Boom luffing angle

Telescopic arm 87°

Folding arm and telescopic arm 0°—175°

Rotation range 360°Full rotation
Outrigger extension time ≤50s
The boom rises to the rated height and rotates for 90° time ≤150s

250kw Aerial Ladder Fire Truck 400L Iron Tank 6x4 Drive Model 1



FAQ

1. Q: Why should we choose you ?

A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.



2. Q:What's the delivery time?

A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

c. European brand chassis 9 months upon receipt of advance deposit.



3. Q:What's your payment method?

A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
