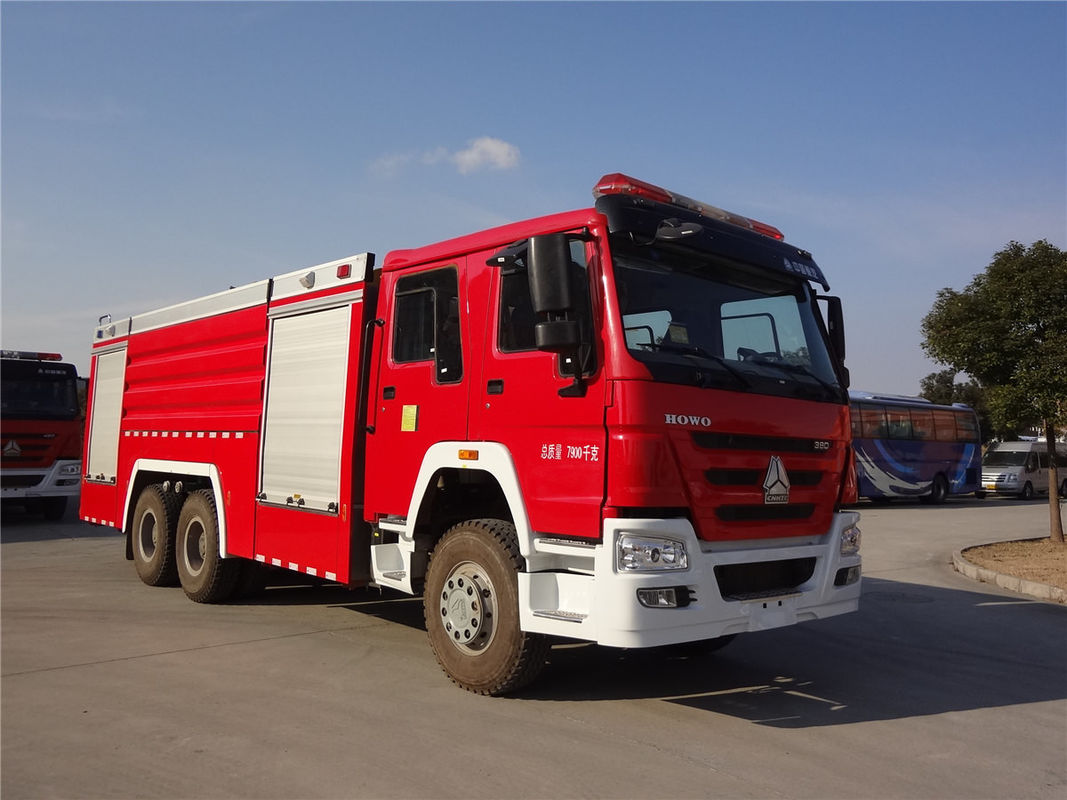

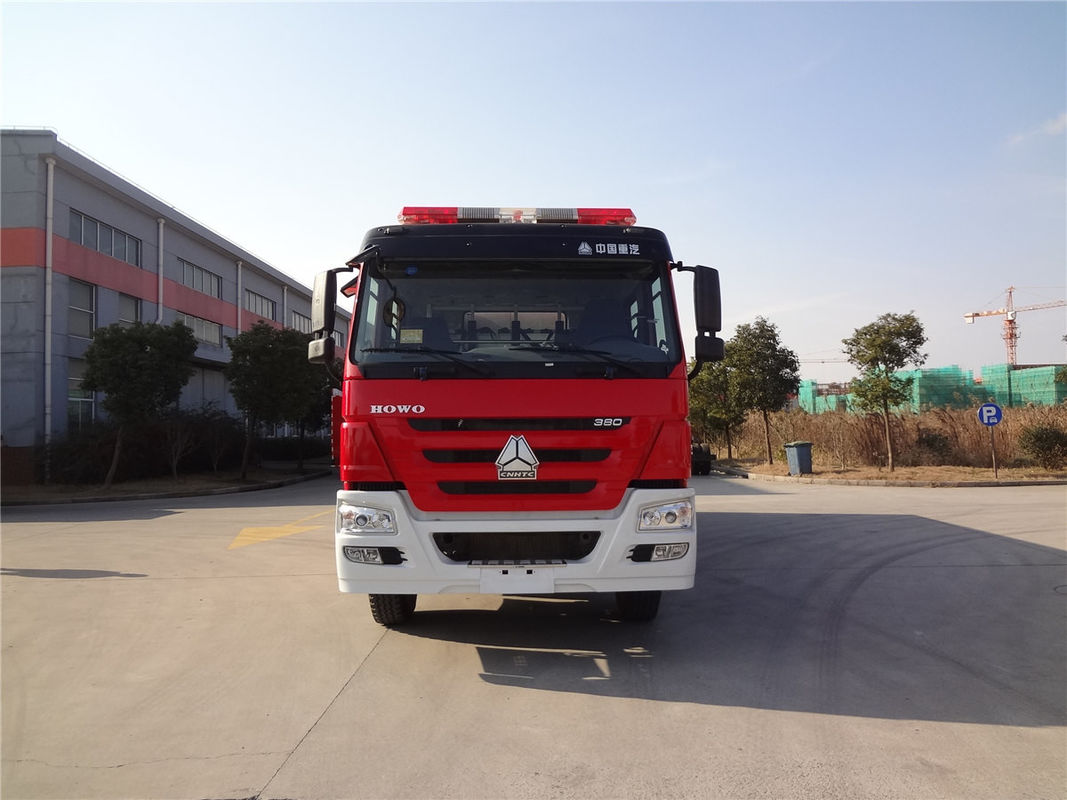

6x4 Foam Firefighting Truck with 16000kg Water Foam Tender for Fire Brigades
Vehicle
| Dimension | Approx. 10350×2550×3446 (mm) |
| Gross Vehicle weight | 34000 (kg) |
| Engine power | 340HP |
| Extinguishing capacity | Water:12000Liters,Foam: 3500Liters |
| Cabin | Double cabin, 2+4 persons. the rear cabin backrests fitted with four fixtures to put Self Contained Breathing Apparatus. |
Chassis
| Manufacturer | Sinotruk Howo |
| Driving type | 6×4 |
| Wheelbase | 4600+1350 mm |
| Max. speed | 102 km/h |
| Engine type | In line, six cylinders, four strokes, water-cooled, direct injection, supercharged, intercooled diesel engine |
| Rated power | 340hp (247 kw) |
| Max. torque | 1120N.M/1200-1600rpm |
| Emision standard | Euro III |
| Steering | Hydraulic steering with power assistance, RHD |
| Gearbox | HW19710,10F&2R |
| Tire type | 12.00—20 |
Fire pump
| Model | CB10/100-G normal pressure fire pump |
| Pressure | 1.0 Mpa |
| Flow | 100 L/s |
| suction depth | 7m |
Fire monitor
| Model | PL80 |
| Flow | 80 L/s |
| Pressure | 0.8 Mpa |
| Throw range | Water≥75m, foam≥70m |
| Rotation | 0-360° |
| Pitch | -15° to 90° |
Tanker
| Capacity | Water: 12000L, foam: 3500L, |
| Material | 304 stainless steel or PP |
FAQ
1. Q: Why should we choose you?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
Our products are sold all over the world, you can rest assured.
