CIMC 3% 6% Water Tanker Fire Truck 10 Forward Gear Gearbox

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

CIMC 3% 6% Water Tanker Fire Truck 10 Forward Gear Gearbox

CIMC 3% 6% Water Tanker Fire Truck 10 Forward Gear Gearbox
CIMC 3% 6% Water Tanker Fire Truck 10 Forward Gear Gearbox CIMC 3% 6% Water Tanker Fire Truck 10 Forward Gear Gearbox

Large Image :  CIMC 3% 6% Water Tanker Fire Truck 10 Forward Gear Gearbox

Product Details:
Place of Origin: Shanghai, China
Brand Name: CIMC
Certification: ISO9001,CCC
Model Number: PM80
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: roll roll
Delivery Time: 120 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Money Gram
Supply Ability: 300 units/year
Detailed Product Description
Dimension: 8475×2500×3400 Weight: 19800kg
Height: 25m Fording Depth: 500mm
Max Loading Weight: 30090kg Seat: 2+4
Water: 18550L Foam: 4000L
High Light:

CIMC Water Tanker Fire Truck

,

6% Water Tanker Fire Truck

,

CIMC tanker fire truck

10 Forward Gear Gearbox Water Tank Fire Trucks Max Torque Mixing Ratio 3% 6%





CIMC 3% 6% Water Tanker Fire Truck 10 Forward Gear Gearbox 0

Chassis

Manufacturer Sinotruk HOWO
Model ZZ5207M4617D5
Drive type 4x2
Cab Four door lengthen cab
Wheelbase 4600mm
Max. speed 100km/h
Min. turning diameter ≤20m
Approach angle 16°
Departure angle 14°
Engine type Pressure combustion, In-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine
Model D10.28-40
Max. torque 1190N.M
Emission standard China IV
Clutch pull type diaphragm
Gearbox Manual, 10 forward gear

Pump drive system

PTO Sandwich type
Model YTQ600F
Manufacturer YANGZHONG
Transmission shaft High balance precision transmission shaft, use intermediate support connection

Pump drive system

PTO Sandwich type
Model YTQ600F
Manufacturer YANGZHONG
Transmission shaft High balance precision transmission shaft, use intermediate support connection

Side girder

Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.

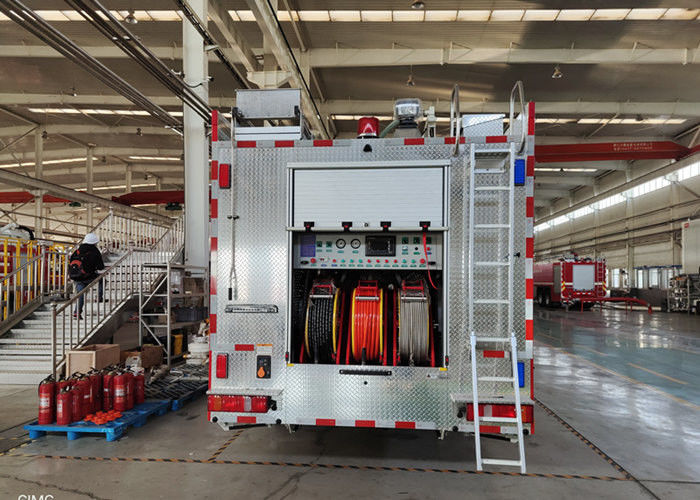

CIMC 3% 6% Water Tanker Fire Truck 10 Forward Gear Gearbox 1

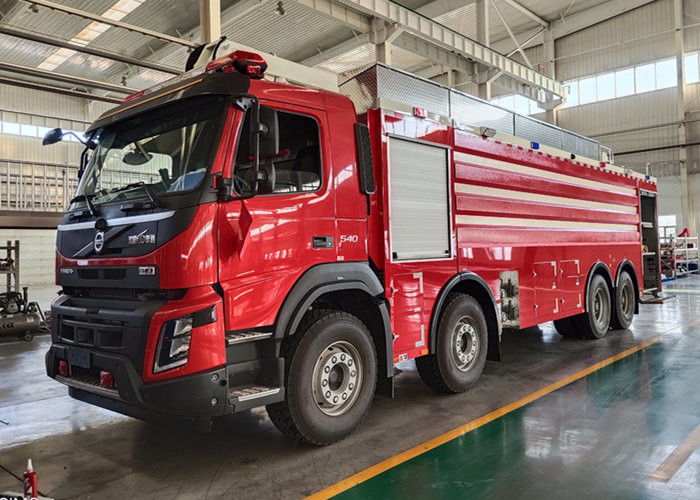

CIMC 3% 6% Water Tanker Fire Truck 10 Forward Gear Gearbox 2
