Q235A Steel 6500kg Fire Truck With Water Tank Foam 6000kg

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

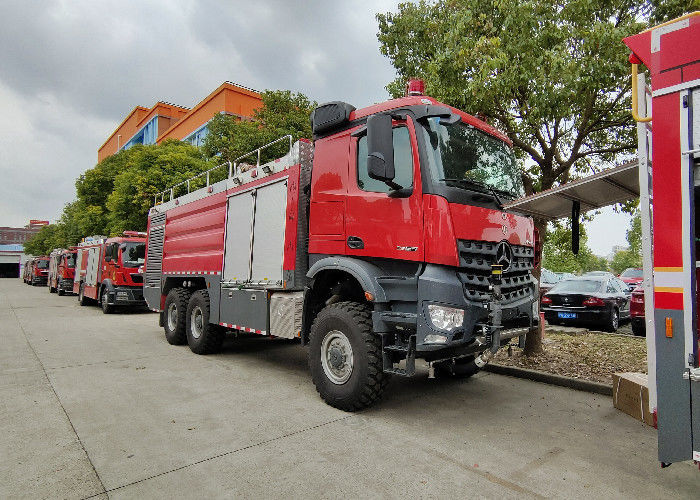

Q235A Steel 6500kg Fire Truck With Water Tank Foam 6000kg

Q235A Steel 6500kg Fire Truck With Water Tank Foam 6000kg
Q235A Steel 6500kg Fire Truck With Water Tank Foam 6000kg Q235A Steel 6500kg Fire Truck With Water Tank Foam 6000kg

Large Image :  Q235A Steel 6500kg Fire Truck With Water Tank Foam 6000kg

Product Details:
Place of Origin: shanghai China
Brand Name: JD Benz
Certification: ISO9001,CCC
Model Number: JDX5100GXFPM35/B
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiable
Delivery Time: 90days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Dimension: 6870X2240X3040 Total Weight: 6125kg
Seat (inc. Driver): 1+1+3 Max. Power: 139kw/189hp
Drive Type: 4x2 Max. Speed: 110Km/h
Capacity: Water 2320L Foam: 1065L
High Light:

6500kg fire truck with water tank

,

Q235A fire truck with water tank

,

Foam 6000kg water tank trucks

PTO gear switch Foam And Water Tank Fire Trucks Q235A Steel Water 6500kg Foam 6000kg







Vehicle

Dimension (L×W×H) 9720×2500×3700mm
Gross weight 28000kg
Complete vehicle shipping mass 15350kg
Seat (inc. driver) 2
Max. power 265kw



Chassis

Manufacturer Daimler
Model Actros3336
Drive type 6x4
Cab Manual operation hydraulic forward turnover
Wheelbase 4500+1350mm
Max. total mass 18000kg
Max. speed 95km/h
Min. turning diameter <21m
Approach angle 17°
Departure angle 13°
Engine type V type six-cylinder, inter-cooling, electronic unit pump diesel engine
Model OM501LA.IV/2
Max. power 265kw
Max. torque 1850N•m
Emission standard China IV/ Euro IV
Clutch Monolithic, dry
Gearbox model Manual 16 forward gear



Fire pump

Manufacturer Rosenbauer
Model R600
Flow 90L/s
Pressure 1.0MPa
Water diversion Piston primer pump
Max. vacuum degree ≥85 kPa
Priming time ≤80s
Auto ring pump foam PH48x2
Type Manual
Mixing ratio 3%, 6%



Pipeline

Outlet pipeline

2×DN80 ordinary pressure outlet

1×DN50 ball valve

Suction inlet

1×DN150 suction coupling

1×DN150 pneumatic butterfly valve

Monitor pipeline

1×DN125 monitor pipeline

1×DN125 butterfly valve

Residual water outlet Water cock
Pump drive system NMV200
Drive shaft High balance precision
