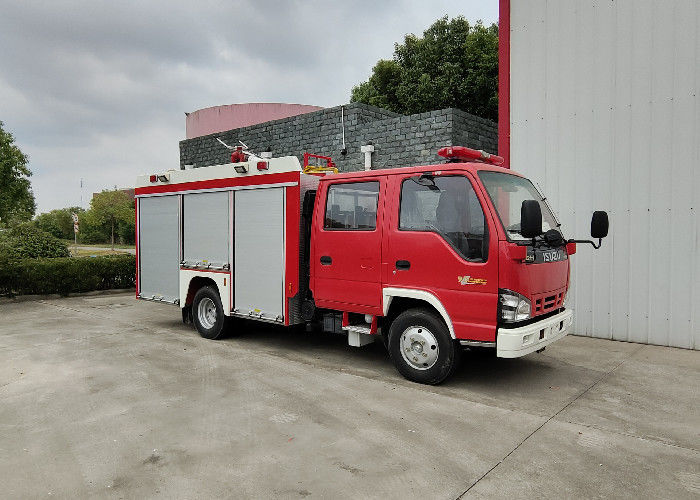

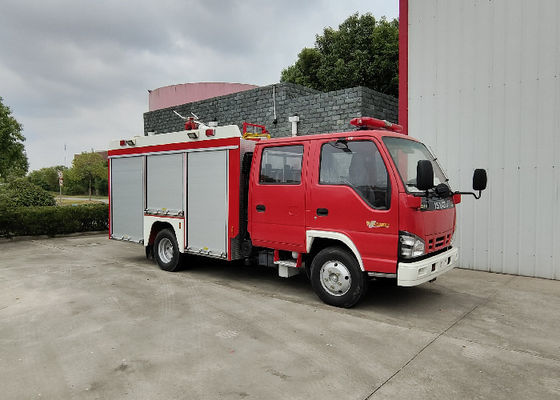

Q235A Steel Fire Pumper Truck Water Diversion Time 35s

Q235A Steel Fire Pumper Truck Water Diversion Time 35s

  • High Light

    GB7956.1 fire pumper truck

    ,

    Q235A Steel pumper tanker fire trucks

    ,

    35s fire pumper truck

  • Dimension
    6870X2240X3040
  • Total Weight
    6125kg
  • Seat (inc. Driver)
    1+1+3
  • Max. Power
    139kw/189hp
  • Drive Type
    4x2
  • Max. Speed
    110Km/h
  • Capacity
    Water 2320L
  • Foam
    1065L
  • Place of Origin
    shanghai China
  • Brand Name
    ISUZU
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5100GXFPM35/B
  • Minimum Order Quantity
    1 unit
  • Price
    negotiable
  • Delivery Time
    90days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram

Q235A Steel Fire Pumper Truck Water Diversion Time 35s

Water Diversion Time 35s Foam And Water Tank Fire Trucks Q235A High Quality Steel





Electrical System

 The main warning light at the top of the cab is a red long row of warning lights, equipped with a 100W alarm control system; two strobe lights are installed on each side of the compartment, LED side lights are installed on both sides of the vehicle, and safety sign lights are installed below; One 24V, 35W LED remote search light is installed at the back of the top;



Search light



Dashboard and board equipment

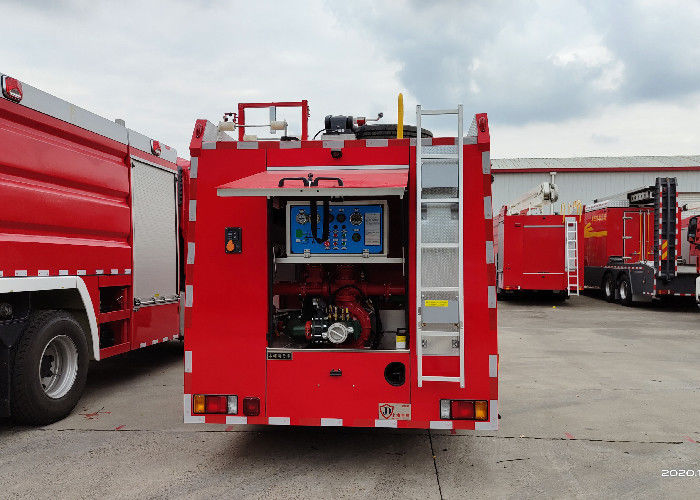

8.1 pump room

8.1.1 Function switch: Meter power switch and indicator

Water diversion switch and indicator

Equipment box light switch and indicator light

8.2.2 Instrument: Pressure gauge

Pressure vacuum meter

Water level gauge

Level table

Tachometer

Water temperature gauge

Oil temperature gauge



Spray paint

Antirust primer

Vehicle file

11.1 superstructure instruction manual

11.2 superstructure and chassis assembly instructions

General technical requirements

12.1 All operating switches, instruments, equipment racks and vehicles shall have the nameplate logo of the English logo and the relevant precautions for use. All the signs shall be permanently reinforced and pasted.

12.2. The performance of the whole vehicle complies with the provisions of GB7956.1 "General Technical Conditions for Fire Trucks" and GB6245-2006 "Fire Pumps".

12.3. The fire truck complies with the provisions of GB7956.3 "Foam Fire Truck".

12.4 All riveting shall maintain a certain density, and all welds shall be firm, smooth and flat.
