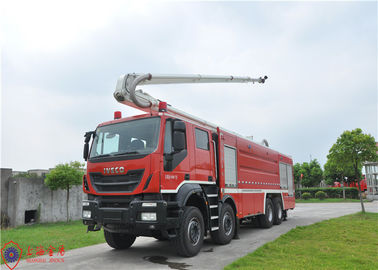

JP25 water tower Fire truck is adapted from IVECO chassis, 8x4 drive. The vehicle equipped with Iveco engine and 25 meter aerial ladder. It's a new type of high lift fire truck, which combines three functions of large water tank vehicle, foam vehicle and high spraying water vehicle.
|
Vehicle
|
Dimension (L×W×H) | 11865×2500×3800 (mm) |
| Gross weight | 39750 (kg) | |
| Water/ foam tank capacity | 12000L /4000L | |
| Seat (inc. driver) | 2+4 | |
| Fording depth | 500mm | |
| Max. working height | 25m | |
| Specific power | 9.25 | |
|
Chassis
|
Manufacturer | FIAT IVECO |
| Model | AD410T50 | |
| Driving | 8×4 | |
| Cabin | 1+1+4 | |
| Wheel base | 1875+3950+1380 (mm) | |
| Chassis Net weight | 10910Kg | |
| Approach angle | 26° | |
| Departure angle | 22° | |
| Min. ground clearance | 310mm | |
| Max. autohrozed total mass | 41000kg | |
| Max. loading weight | 30090kg | |
| Front axle allowable load | 2×8500 Kg | |
| Rear axle allowable load | 2×13000 Kg |
Engine
| Model | IVECO CURSOR13 F3BE3681BR |
| Max. engine power | 368Kw/500hp@1900 |
| Max. torque | 2300 @1000 |
| Fuel tank | 300L steel fuel tank |
| Emission standard | China IV |
| Urea tank | 55L |
| Clutch | Monolithic |
| Gearbox | ZF 16S 2520 TO manual |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
