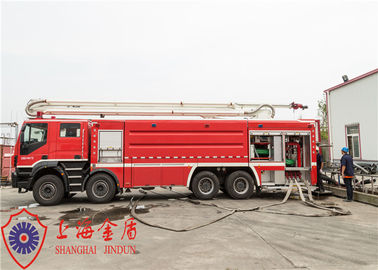

8X4 High Spraying water tower fire truck 39ton 25m working height 6 seats
JP25 water tower Fire truck is a new type of high lift fire truck, which combines three functions of large water tank vehicle, foam vehicle and high spraying water vehicle. The water tower fire vehicle is adapted form IVECO chassis. Equipped wtih 25m foldable boom. It's mainly used for high raise bulding fire suppress and outfire.
|
Vehicle
|
Dimension (L×W×H) | 11865×2500×3800 (mm) |
| Gross weight | 39750 (kg) | |
| Water/ foam tank capacity | 12000L /4000L | |
| Seat (inc. driver) | 2+4 | |
| Fording depth | 500mm | |
| Max. working height | 25m | |
| Specific power | 9.25 | |
|
Chassis
|
Manufacturer | FIAT IVECO |
| Model | AD410T50 | |
| Driving | 8×4 | |
| Cabin | 1+1+4 | |
| Wheel base | 1875+3950+1380 (mm) | |
| Chassis Net weight | 10910Kg | |
| Approach angle | 26° | |
| Departure angle | 22° | |
| Min. ground clearance | 310mm | |
| Max. autohrozed total mass | 41000kg | |
| Max. loading weight | 30090kg | |
| Front axle allowable load | 2×8500 Kg | |
| Rear axle allowable load | 2×13000 Kg |
Tyre
| Front axle | 4× 385/65 R22.5 highway tires |
| Rear axle | 8× 315/80 R22.5 traction tires |
| Rim | 11.75×22.5/9.00×22.5 |
| Spare wheel | 1×315/80 R22.5 highway tire with rim |
PTO
| Model | ZF NMV221, Full power |
| Specification parameter |
Anti-clockwise Speed ratio1.5 Max. torque 1300N.m 120mm flange plate |
Certifications
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q:What's your main products?
A:Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
Our products are sold all over the world, you can rest assured.
