High Spraying Water Tower Fire Truck Benz Chassis 32 Meters Working Height

High Spraying Water Tower Fire Truck Benz Chassis 32 Meters Working Height

  • High Light

    fire engine vehicle


    huge fire truck

  • Dimension
  • Gross Weight
  • Seat
  • Working Height
  • Wheel Base
    4500 + 1350(mm)
  • Fording Depth
  • Driving
  • Max Loading
  • Product Name
    Water Tower Fire Truck
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

High Spraying Water Tower Fire Truck Benz Chassis 32 Meters Working Height

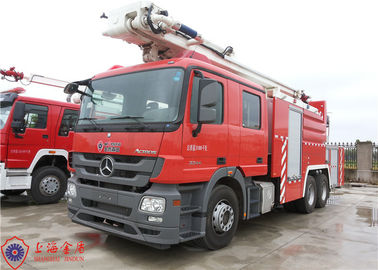

Benz chassis 6X4 High Spraying water tower fire truck 39ton 32m working height


JDX5310JXFJP32 fire truck is a combination of water, foam, high jet three functions in a new class of high-lift truck. It is a domestic advanced level of multi-purpose fire fighting vehicles. The car is used electro-hydraulic proportional and off centrally control technology with fully hydraulic drive, three telescopic + folding side arranged a fire truck. The car used Mercedes-Benz chassis converted Actro3344 II; with HALE RSD1500 type fire pump, using AKRON 3578 + 5177 electric gun monitor, with big flow, long range; at the same time the car comes with 4.8 tons water and 1.9 tons foam tank, in a remote location away from the water fire fighting independently.


1, The whole vehicle

Dimensions length × width × height 10330 × 2500 × 3980 (mm)
Full authorized total mass 31000 kg
Vehicles curb weight 23800 kg
Persons (including the driver) 2+4
Maximum power 320/435 kW / hp


2, chassis


Manufacturer Mercedes-Benz
Model Mercedes Actros3344
Drive Type 6 × 4
Cab modified Crew (1 + 1 + 4),Rear rack installation four SCBA
Wheelbase 4500 + 1350 mm
Chassis weight 9230Kg
Maximum allowable load 23700Kg
maximum speed 104Km / h
Minimum turning diameter <22.3 m
Engine V-type 6-cylinder turbocharged and intercooled diesel engine
Model Mercedes-Benz OM501 LA
Maximum engine power 320Kw / 1800r / min
Maximum torque 2100N.M / 1080rpm
Emission standard Euro IV
Clutch monolithic, dry type
Transmission Mercedes-Benz G240-16, fully synchronized gearbox.


High Spraying Water Tower Fire Truck Benz Chassis 32 Meters Working Height 0



1. Q: Why should we choose you ?

    A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

        b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

        c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.


2. Q:What's the delivery time?

    A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

         b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

         c. European brand chassis 9 months upon receipt of advance deposit.


3. Q:What's your payment method?

    A: T/T and L/C are preferred.


4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.


5. Q: How is the packing?

    A:All the packing comply with exporting standard.


6. Q:What's your main products?

    A:Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.


Any other questions, please do not hesitate to contact with us.
