135kw 3500L Tank Capacity Foam Fire Truck Firefighting Throw Range Over 50 Meters

135kw 3500L Tank Capacity Foam Fire Truck Firefighting Throw Range Over 50 Meters

  • High Light

    fire service truck

    ,

    modern fire truck

  • Chassis Brand
    ISUZU
  • Dimension
    6870X2240X3040
  • Total Weight
    6125kg
  • Full Load
    10000kg
  • Seat
    5
  • Max. Power
    139kw/189hp
  • Drive Type
    4x2
  • Wheelbase
    3815mm
  • Max. Speed
    110Km/h
  • Place of Origin
    shanghai China
  • Brand Name
    CIMC Jindun
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5100GXFPM35/B
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    350 units/year

135kw 3500L Tank Capacity Foam Fire Truck Firefighting Throw Range Over 50 Meters

135kw 3500L Tank Capacity Foam Fire Truck Firefighting Throw Range Over 50 Meters

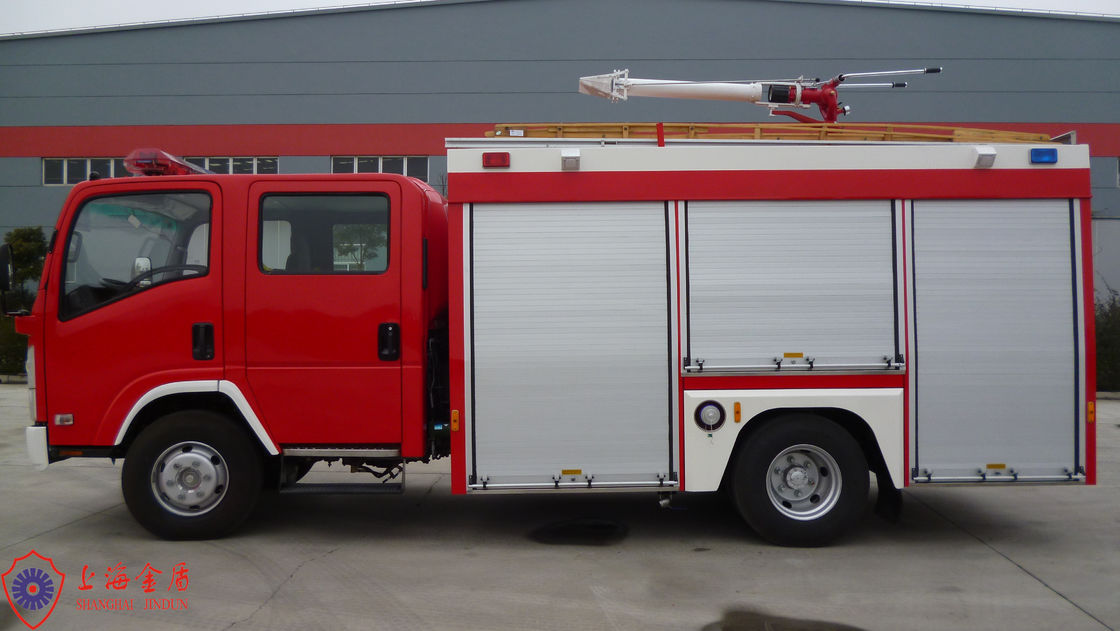

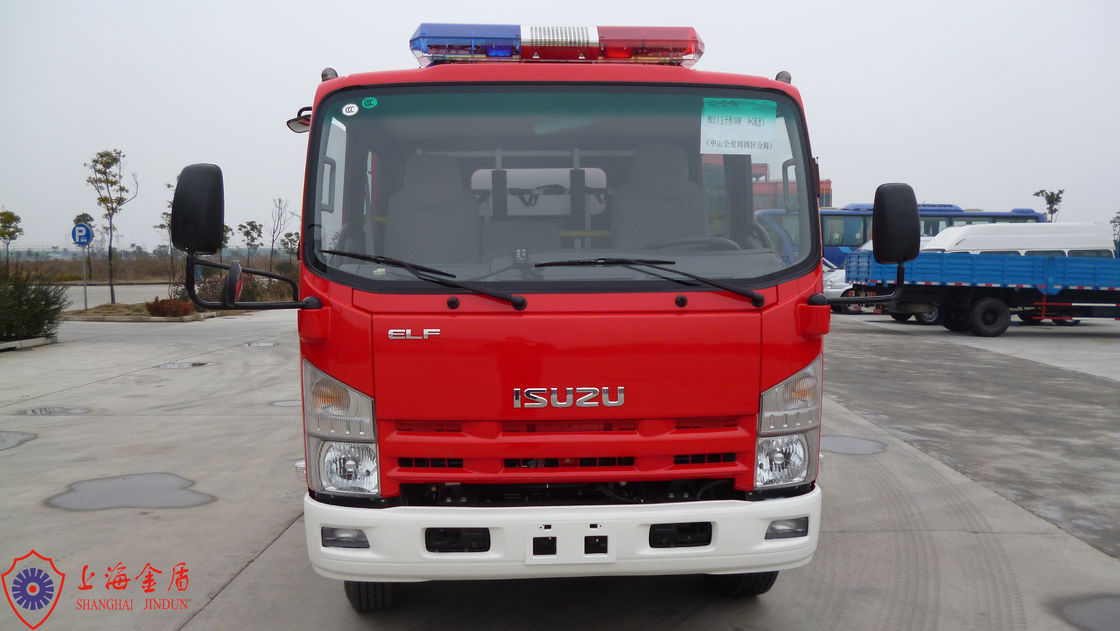

JDX5100GXFPM35/B foam fire truck adopts QL11009KARY ISUZU chassis, USA HALE AP32 fire pump, USA AKRON 3430 fire monitor and other fire-fighting equipment. The vehicle has the features of a good structure and reasonable layout, easy operation and maintenance. It's usually used by public security fire brigades in large and medium cities, petrochemical companies and airports and other professional fire brigade.



I. Main performance parameters:

1. The whole vehicle

Dimensions (mm) 6870X2240X3040
Full load permissible weight (kg) 10000
Vehicle total weight (kg) 6125
Fire-extinguishing agents: water + Foam water + Foam:3500kg
Number of passengers (incl. driver) 5
Max. Power (kw/hp) 139kw/189hp



2. Chassis

Name ISUZU chassis
Model QL11009KARY
Drive Type 4x2
Cab double cabin (1 + 1 + 3), the rear seat backrests fit with three fixtures for putting Self Contained Breathing Apparatus.
Wheelbase 3815mm
Chassis weight 2970Kg
Max. permissible load 7030Kg
Maximum speed 110Km/h
Min. turning diameter diameter:<15.2m
Engine Inline four-cylinder, water-cooled, electronically controlled two-stage, high-pressure common-rail, turbocharged, intercooled, diesel engine electronic control
Type 4HK1-TCG40
Max. power 139Kw/ 2600r/min
Max. torque M/1600rpm
Emission standard China Ⅳ
Clutch Single, dry, diaphragm spring, oil and gas booster
Gearbox MLD-6Q
Fuel 100L



135kw 3500L Tank Capacity Foam Fire Truck Firefighting Throw Range Over 50 Meters 0

FAQ:

1. Q:Are you a factory or a trade company?

    A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.



2. Q:Where is your factory located?

    A:We are located in Shanghai Province,China.



3. Q:What's your payment method?

    A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

    A:All the packing comply with exporting standard.



Any other questions, please do not hesitate to contact with us.
