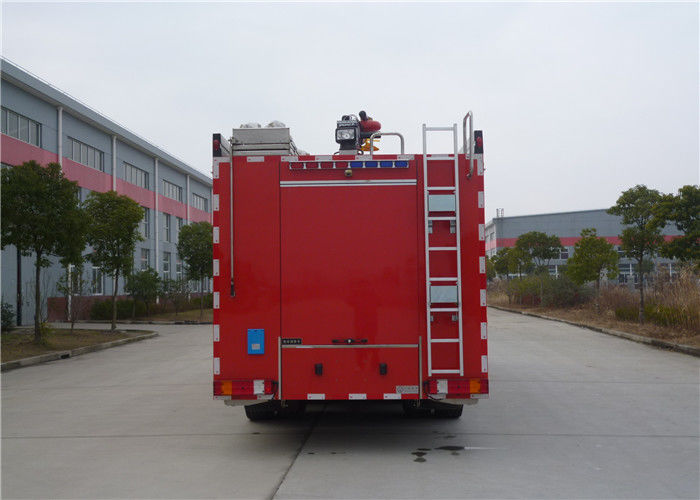

265 KW 12000KG Water/Foam Fire Truck with High Balance Precision Drive Shaft

265 KW 12000KG Water/Foam Fire Truck with High Balance Precision Drive Shaft

  • High Light

    rescue fire truck

    ,

    pumper fire truck

  • GVW
    28000KG
  • Seat (inc. Driver)
    2
  • Max. Power
    265kw
  • Wheelbase
    4500+1350mm
  • Max. Speed
    95km/h
  • Cab
    Manual Operation Hydraulic Forward Turnover
  • Fire Extinguishant
    Water+ Foam 12000 Kg
  • Product Name
    12000KG Water/Foam Fire Truck
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    Benz
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5280GXFPM120/B
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

265 KW 12000KG Water/Foam Fire Truck with High Balance Precision Drive Shaft

265 KW 12000KG Water/Foam Fire Truck with High Balance Precision Drive Shaft



Vehicle

Dimension (L×W×H) 9720×2500×3700mm
Gross weight 28000kg
Complete vehicle shipping mass 15350kg
Seat (inc. driver) 2
Max. power 265kw


Chassis

Manufacturer Daimler
Model Actros3336
Drive type 6x4
Cab Manual operation hydraulic forward turnover
Wheelbase 4500+1350mm
Max. total mass 18000kg
Max. speed 95km/h
Min. turning diameter <21m
Approach angle 17°
Departure angle 13°
Engine type V type six-cylinder, inter-cooling, electronic unit pump diesel engine
Model OM501LA.IV/2
Max. power 265kw
Max. torque 1850N•m
Emission standard China IV/ Euro IV
Clutch Monolithic, dry
Gearbox model Manual 16 forward gear



Pipeline

Outlet pipeline

2×DN80 ordinary pressure outlet

1×DN50 ball valve

Suction inlet

1×DN150 suction coupling

1×DN150 pneumatic butterfly valve

Monitor pipeline

1×DN125 monitor pipeline

1×DN125 butterfly valve

Residual water outlet Water cock
Pump drive system NMV200
Drive shaft High balance precision





Onboard document

  1. Vehicle operation and maintenance manual
  2. Chassis operating manual
  3. Chassis operation and maintenance manual
  4. Chassis quality warranty card
  5. Chassis certificate, vehicle certificate, 3C logo
  6. Engine code copy
  7. Chassis code copy
  8. Onboard equipment list
  9. Follow-up service card
  10. Hand-over list
