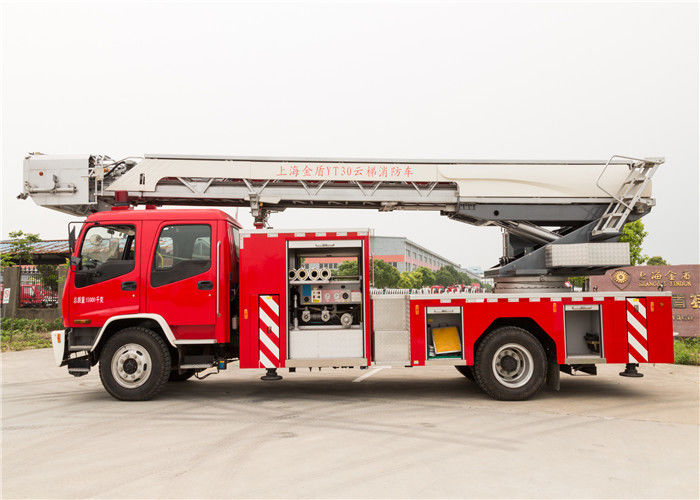

4x2 Drive 30 Meters Working Height Aerial Turn Table Ladder Fire & Rescue Truck

4x2 Drive 30 Meters Working Height Aerial Turn Table Ladder Fire & Rescue Truck

  • High Light

    aerial platform fire truck

    ,

    remote control ladder fire truck

  • Drive
    4x2
  • Overall
    8785mmX2465mmX2780mm
  • Wheel Base
    5550mm
  • Gross Weight
    16000kg
  • Seat
    6
  • Structure
    Four-door
  • Working Height
    30 Meters
  • Key Words
    Turn Table Ladder Platform 30m Fire Truck
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    ISUZU
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5150JXFYT30
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

4x2 Drive 30 Meters Working Height Aerial Turn Table Ladder Fire & Rescue Truck

4x2 Drive 30 Meters Working Height Aerial Turn Table Ladder Fire & Rescue Truck



Main features:

  1. Expand faster: Compared to other domestic and imported ladder trucks, with the fastest expansion rate;
  2. Advanced technology: exclusive for rotating compass leveling technology in China, with features of a large adjustment range, short adjustment time, and reliable adjustment;
  3. Performance and reliability: chassis, ladders, pumps, fire monitor and other major equipment are imported from other countries, environmental adaptability, lower failure rate;
Chassis Manufacturer Isuzu
Model QL11609QFRY
Drive 4x2
Overall 8785mmX2465mmX2780mm
Wheel base 5550mm
Gross weight 16000kg
Chassis net weight 4750kg
Engine Model 4HK1-TCG40
  Type Inline four-cylinder, water-cooled, electric control high pressure common rail diesel engine
  Displacement 5193ml
  Power 138Kw@2600rpm
  Torque 510Nm@1600rpm
  Emission standard China IV
  Gearbox 5-speed manual gear box
  Fuel tank 200L
Cab Structure Four-door
  Seat 6

 4x2 Drive 30 Meters Working Height Aerial Turn Table Ladder Fire & Rescue Truck 0





FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.



2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.



3. Q:What's your payment method?

A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
