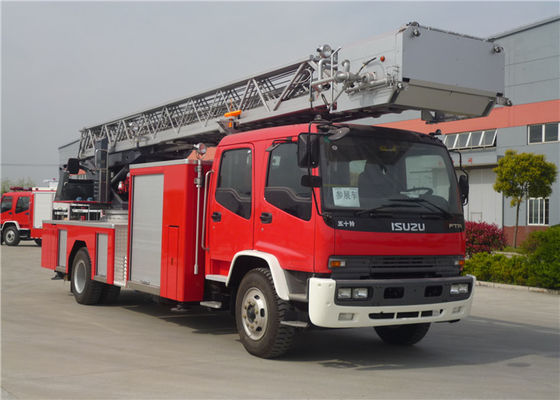

30 Meters Height Six Seats Japanese Chassis 4x2 Drive Aerial Ladder Fire Engine

30 Meters Height Six Seats Japanese Chassis 4x2 Drive Aerial Ladder Fire Engine

  • High Light

    fire engine ladder truck

    ,

    remote control ladder fire truck

  • Drive
    4x2
  • Overall
    8785mmX2465mmX2780mm
  • Gross Weight
    16000 Kg
  • Seat
    6
  • Chassis Weight
    4750kg
  • Power
    138Kw@2600rpm
  • Ladder Working Height
    30 Meters
  • Product Name
    30 Meters Aerial Ladder Fire Engine
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    ISUZU
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5150JXFYT30
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

30 Meters Height Six Seats Japanese Chassis 4x2 Drive Aerial Ladder Fire Engine

30 Meters Height Six Seats Japanese Chassis 4x2 Drive Aerial Ladder Fire Engine



Chassis Manufacturer Isuzu
Model QL11609QFRY
Drive 4x2
Overall 8785mmX2465mmX2780mm
Wheel base 5550mm
Gross weight 16000kg
Chassis net weight 4750kg





Pipe system Suction 2xDN100
Residual water drainage At the lowest and easy accessible location is mounted with residual water drainage cock, it can drain away residual water quickly when required.
Water outlet 2xDN65, 2xDN80
Vacuum pump Type Oil-free
Max. suction depth 7.5m
Max. vacuum degree ≥88%
Hydraulic system
Drive system Model PT058/PQ3-D
Speed ratio 1.15
Max. torque 350Nm
Main hydraulic pump Model K3VL112/B-1NLHM-L1-TB007
Max. pressure 35Mpa





Shanghai Jindun Special Vehicle Equipment Co., Ltd. introducesladder technology from Japan Morita Corporation, and combines with our own fire truck development capabilities, which developed YT32 / BG type ladder truck with independent intellectual property rights. This product combines high rescue and low fire fighting functions, which is a new generation of fire truck products.
