32m Working Height 4x2 Drive Six Seats Aerial Ladder Fire Truck with Water Tank

32m Working Height 4x2 Drive Six Seats Aerial Ladder Fire Truck with Water Tank

  • High Light

    fire engine ladder truck


    aerial platform fire truck

  • Water Tank Capacity
  • Overall
  • Wheel Base
  • Gross Weight
  • Seat
  • Structure
  • Power
  • Chassis Brand
  • Product Name
    Six Seats Aerial Ladder Fire Truck
  • Place of Origin
  • Brand Name
    CIMC Jindun
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

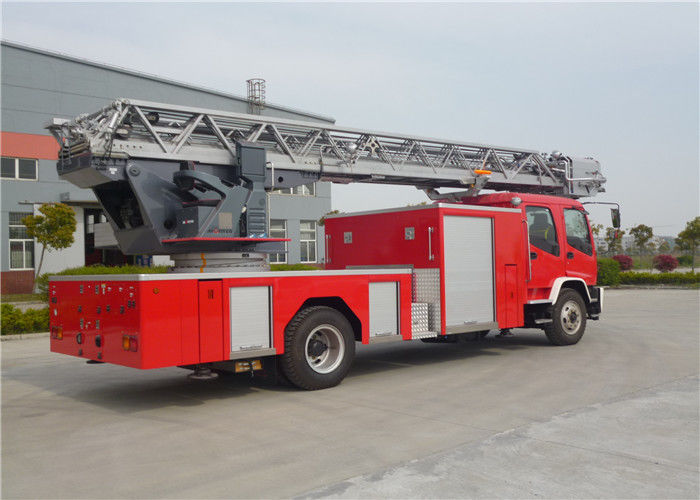

32m Working Height 4x2 Drive Six Seats Aerial Ladder Fire Truck with Water Tank

Four Doors ISUZU Chassis 4x2 Drive Aerial Ladder Truck 30 Meters Working Height Six Seats


Chassis Manufacturer Isuzu
Model QL11609QFRY
Drive 4x2
Overall 8785mmX2465mmX2780mm
Wheel base 5550mm
Gross weight 16000kg
Chassis net weight 4750kg
Engine Model 4HK1-TCG40
  Type Inline four-cylinder, water-cooled, electric control high pressure common rail diesel engine
  Displacement 5193ml
  Power 138Kw@2600rpm
  Torque 510Nm@1600rpm
  Emission standard China IV
  Gearbox 5-speed manual gear box
  Fuel tank 200L
Cab Structure Four-door
  Seat 6


Hydraulic system
Drive system Model PT058/PQ3-D
Speed ratio 1.15
Max. torque 350Nm
Main hydraulic pump Model K3VL112/B-1NLHM-L1-TB007
Max. pressure 35Mpa


Shanghai Jindun Special Vehicle Equipment Co., Ltd. introducesladder technology from Japan Morita Corporation, and combines with our own fire truck development capabilities, which developed YT32 / BG type ladder truck with independent intellectual property rights. This product combines high rescue and low fire fighting functions, which is a new generation of fire truck products.


32m Working Height 4x2 Drive Six Seats Aerial Ladder Fire Truck with Water Tank 0


1. Q: Why should we choose you ?

    A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

        b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

        c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.


2. Q:What's the delivery time?

    A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

        b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

        c. European brand chassis 9 months upon receipt of advance deposit.


3. Q:What's your payment method?

    A: T/T and L/C are preferred.


4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.


5. Q: How is the packing?

    A:All the packing comply with exporting standard.


Any other questions, please do not hesitate to contact with us.
