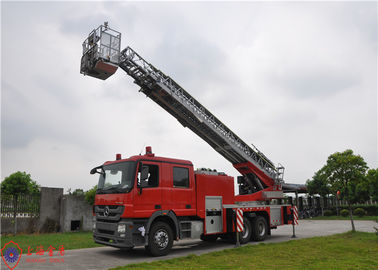

YT32 Lower Failure Rate 32m Aerial Ladder Fire Truck with Four Section Ladder

YT32 Lower Failure Rate 32m Aerial Ladder Fire Truck with Four Section Ladder

  • High Light

    fire engine ladder truck

    ,

    remote control ladder fire truck

  • Drive
    6x4
  • Overall
    10720×2500×4000
  • Wheel Base
    4500+1350mm
  • Ladder Section
    4
  • Max Height
    30.7
  • Max. Speed
    100km/h(Electronic Speed Limit)
  • Working Height
    32 Meters
  • Product Name
    Aerial Ladder Platform Fire Truck
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    ISUZU
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5320JXFYT32/BG
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

YT32 Lower Failure Rate 32m Aerial Ladder Fire Truck with Four Section Ladder

YT32 Lower Failure Rate 32m Aerial Ladder Fire Truck with Four Section Ladder



Main features:

  1. Expand faster: Compared to other domestic and imported ladder trucks, with the fastest expansion rate;
  2. Advanced technology: exclusive for rotating compass leveling technology in China, with features of a large adjustment range, short adjustment time, and reliable adjustment;
  3. Performance and reliability: chassis, ladders, pumps, fire monitor and other major equipment are imported from other countries, environmental adaptability, lower failure rate;



Item unit parameter
Dimensions (length x width x height) mm 10720×2500×4000
Front suspension mm 1440
Wheelbase mm 4500+1350
Rear suspension mm 2950
Extension mm 250
Wheel distance mm Front 2050 rear 1800



Ladder performance

Item unit parameter
Ladder section number   4
Ladder length
Full contraction m 9.65
Full extension m 30.05
Stand up -10~75
angle of rotation 360
Max height m 30.7
Maximum amplitude m 18.2
Lifter load N 1800
Working bucket load N 4000
  1. External configuration:
  2. Benz Actrosdouble cabin
  3. Cab four point suspension, rear suspension strengthening
  4. Cab hydraulic turnover device
  5. Steel skylight, middle control door lock, extra two spare keys

Electric adjustment can be heated to the rear view mirror, the driver side of the wide angle rear view mirror

Internal configuration:

  1. The driver can adjust the seat, the seat can be folded
  2. electric doors and windows, car pedal lights
  3. CD radio, heating / ventilation system, air conditioning system

Dust filter

Instrument :

  1. Instrument panel display system, international standard metric unit
  2. Outdoor temperature display, fuel consumption display
  3. Reversing warning device

Shanghai Jindun Special Vehicle Equipment Co., Ltd. introducesladder technology from Japan Morita Corporation, and combines with our own fire truck development capabilities, which developed YT32 / BG type ladder truck with independent intellectual property rights. This product combines high rescue and low fire fighting functions, which is a new generation of fire truck products.
