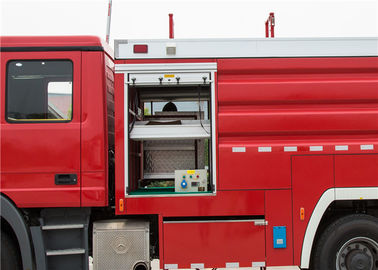

Airport fire truck can be used for rapidly rescuing aircraft passengers and crew, and extinguishing fire. It is also applicable to building firefighting.
The total weight of airport fire truck is 29 tons, using the German Mercedes-Benz ACTROS 3360 chassis, 6 × 6 drive, Germany Mercedes-Benz OM502LA water-cooled V-type eight-cylinder 24-valve turbocharged and intercooled diesel engine electronically controlled common rail injection, 9500L water tank, 1200L foam tank, equipped with controlling fire-fighting equipment and rescue equipments in the cab.
One Water / Foam Monitor on the roof
|Manufacturer||America Akron Brass Company|
|Model||Akron 3578 + three phase jet flow cannon|
|Position||Above of the pump room|
|Control system||it is fixed in the cabin. It is easy for driver to operate when vehicle is running. It can be handle operation. Flow rate, DC or mist spray pattern can be adjusted during operation. Configure the wireless remote control (remote distance ≥150 meters);|
|Installation||fixed installation with flange|
|Nozzle||water and foam, with “O” shape nozzle, infinitely adjustable.|
|Turn range||level turn≥170℃(left/right: 85°)；Angle of elevation≥120℃(-30°to 90°)|
|Flow rate||1.0Mpa, 4800 L/min|
|Injection span||≥11 meters (mist, no wind)|
|Throw range||Water throw range:about 75m|
