Electric Primer Pump Big Foam Fire Trucks ,Max Power 325KW Modern Fire Truck

Electric Primer Pump Big Foam Fire Trucks ,Max Power 325KW Modern Fire Truck

  • High Light

    light up fire truck

    ,

    water fire truck

  • Chassis Brand
    Mercedes Benz
  • Wheelbase
    4500+1350mm
  • Max. Speed
    100km/h
  • Drive Type
    6x4
  • Seat
    6
  • Max. Power
    325kw
  • Max. Torque
    2100N•m
  • Flow Of Pump
    90L/s
  • Product Name
    Modern Foam Fire Truck
  • Place of Origin
    shanghai,China
  • Brand Name
    Jindun
  • Certification
    ISO9001/CCC
  • Model Number
    JDX5320GXFPM160/B
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    350 units/year

Electric Primer Pump Big Foam Fire Trucks ,Max Power 325KW Modern Fire Truck

Electric Primer Pump Big Foam Fire Trucks ,Max Power 325KW Modern Fire Truck

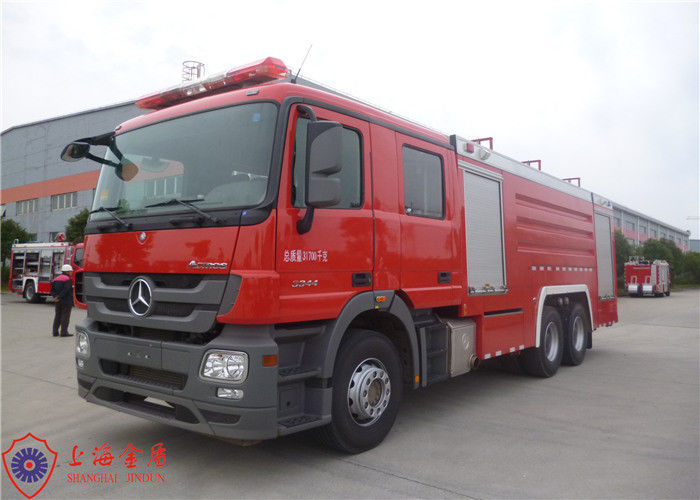

The PM160 modern foam fire truck is modified form Mercedes-Benz Actros3344 chassis, 6x4 drive, max power 325kw. The foam fire vehicle equipped with Benz engine, Hale fire pump and Elkhart fire monitor. The flow of fire pump and fire monitor are 90L/s and 80L/s respectively. The liquid tank capacity is 12000kg water and 4000kg foam.


Vehicle

Dimension (L×W×H) 10135×2500×3500mm
Gross weight 31800kg
Complete vehicle shipping mass 15600kg
Seat (inc. driver) 6
Max. power 325kw



Chassis

Manufacturer Diamler
Model Actros3344
Drive type 6x4
Cab Flattop double row, overturning type
Crew department 4 air breathing apparatus fixed mount in the seats
Wheelbase 4500+1350mm
Max. speed 100km/h
Min. turning diameter <25m
Approach angle 16°
Departure angle 11°
Engine type V type six-cylinder, inter-cooling, electronic unit pump diesel engine
Model OM501LA.IV/4
Max. power 325kw
Max. torque 2100N•m
Emission standard China IV/Euro IV
Clutch Monolithic, dry
Gearbox model Manual-automatic



Fire pump

Manufacturer Hale
Model RSD
Flow 90L/s
Pressure 1.0MPa
Water diversion Electric primer pump
Max. vacuum degree ≥85 kPa
Priming time ≤80s
Auto ring pump foam PH48x2
Type Manual
Mixing ratio 3%, 6%



Pipeline

Outlet pipeline

2×DN80 ordinary pressure outlet

1×DN50 ball valve

Suction inlet

1×DN150 suction coupling

1×DN150 pneumatic butterfly valve

Monitor pipeline

1×DN125 monitor pipeline

1×DN125 butterfly valve

Residual water outlet Water cock
Cooling water pipeline The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline.

Electric Primer Pump Big Foam Fire Trucks ,Max Power 325KW Modern Fire Truck 0

FAQ

1. Q: Why should we choose you ?

    A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

        b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

        c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.



2. Q:What's the delivery time?

    A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

        b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

        c. European brand chassis 9 months upon receipt of advance deposit.



3. Q:What's your payment method?

    A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

    A:All the packing comply with exporting standard.



Any other questions, please do not hesitate to contact with us.
