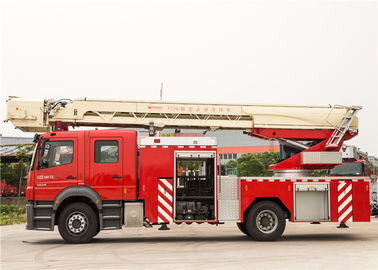

32m Height Aerial Ladder Platform Fire Vehicle with Two Seats 6x4 Drive

32m Height Aerial Ladder Platform Fire Vehicle with Two Seats 6x4 Drive

  • High Light

    fire engine ladder truck


    remote control ladder fire truck

  • Dimension
    10500×2500×3980 (mm)
  • Gross Weight
    32100 (kg)
  • Seat
  • Engine Power
  • Drive
  • Wheel Base
    4500+1350 (mm)
  • Max. Loading
  • Running Speed
  • Working Height
    32 Meters
  • Product Name
    Aerial Ladder Platform Fire Vehicle
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

32m Height Aerial Ladder Platform Fire Vehicle with Two Seats 6x4 Drive

32m height Aerial Ladder Platform Fire Vehicle 2 seats 6x4 drive Mercedes





Dimension (L×W×H) 10500×2500×3980 (mm)
Gross weight 32100 (kg)
Complete vehicle shipping mass 31950(kg)
Seat (inc. driver) 2
Engine Power 320/435(kw/hp)




Manufacturer Mercedes Benz
Model Actros3344
Driving 6×4
Cabin Single cab
Wheel base 4500+1350 (mm)
Net weight 9230Kg
Max. loading 23700Kg
Max. running speed 90Km/h
Min. turning diameter <22.3m
Engine type V type, 6 cylinder in line turbo, middle cool engine
Model Mercedes OM501 LA
Max. engine power 320Kw/ 1800r/min
Maximum torque 2100N.M/1080rpm
Emission standard Euro V
Clutch Monolithic, Dry

Mercedes G240-16

fully synchronized

Full power PTO


NMV200(N56)i=1.48(speedup), Full power

PTO of transmission


MB-NA121-1b(N04)i=1.03/1.24 (speed up)


Balance valve and hydraulic lock

Use US SUN plug-in imported with original packaging, ensure the actuator reliable.



Electric system

  1. Waterway operate panel is located in the right of the car, equipped with spotlight, content gauge, tachometer, pressure gage, hydraulic system pressure gage.

Outrigger operate panel is located in the both side of car tail, equipped with status indicator lamp and operating switch.


      2. Alarm lamp and stroboscope lamp

Equipped with alarm lamp on both side of the car top, alarming apparatus in the cab, LTE595 type stroboscope lamp on the both side of the car.


      3. Illumination

The holder of the boom and the side of the boom is provided with a lighting lamp. The working platform is provided with high-power lighting lamp.


      4. Power supply

The cab is provided with 24V charging socket and reserve a vehicle station connector, equipped with driving recorder and reversing monitoring with display



Red: cab, body

      White: boom, turntable


Main Part

  Item Manufacturer
1 Chassis Mercedes Benz
2 Fire pump HALE RSD
3 Fire monitor US TFT
4 Boom Shanghai Jindun
5 Slewing Bearing Ma On Shan FANG YUAN
6 Hydraulic oil-pump Rexroth
7 Multiple valve1 Danfoss
8 Multiple valve2 GELTCH
9 Balance valve SUN
10 Operating handle P&G
11 Controller IFM
12 Display IFM
13 Sense switch Shanghai Balutu
14 Ultrasonic sensor Turck
