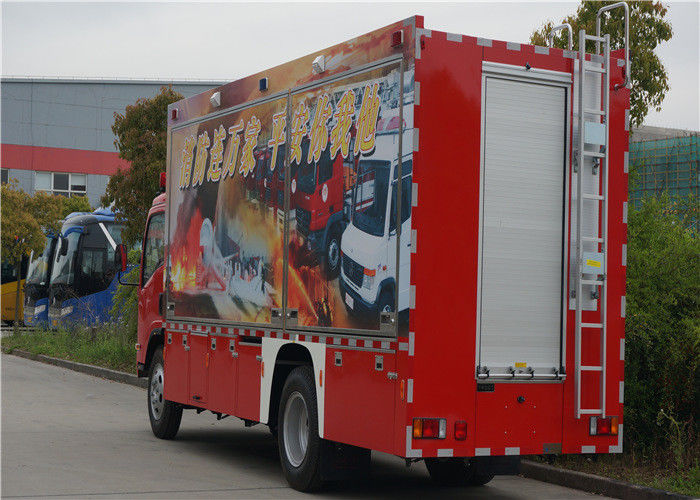

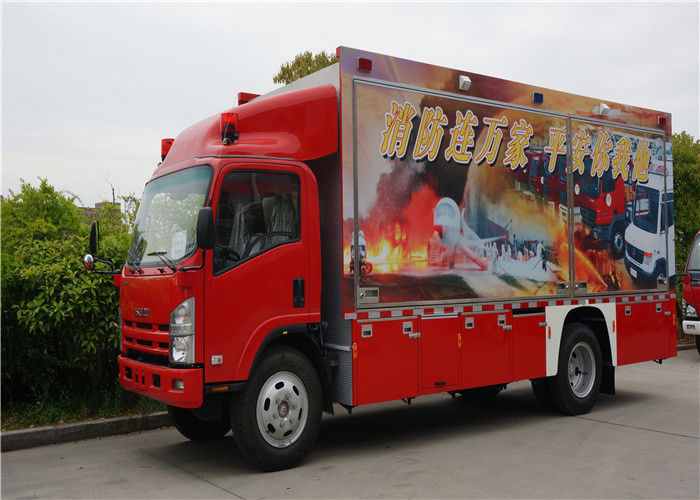

Two Seats Commercial Fire Trucks Japanese Chassis With 13 Sets Communication Modules

Two Seats Commercial Fire Trucks Japanese Chassis With 13 Sets Communication Modules

  • High Light

    international fire truck

    ,

    industrial fire truck

  • Chassis Brand
    ISUZU
  • Dimension
    8000×2260×3650mm
  • Wheelbase
    4475mm
  • Shipping Mass
    7730kg
  • Rated Power
    139kw
  • Seat
    2
  • Drive Type
    4x2
  • Product Name
    Commercial Fire Truck, Fire Equipment Truck
  • Place of Origin
    shanghai China
  • Brand Name
    CIMC Jindun
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5080XXFXC13
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

Two Seats Commercial Fire Trucks Japanese Chassis With 13 Sets Communication Modules

Two Seats Commercial Fire Trucks Japanese Chassis With 13 Sets Communication Modules



1. Main communication module

Interactive multimedia screen
LED display screen P10LED Outdoor HD full-color display
Screen size 6.5 ㎡
Pixel pitch 10mm
Pixel density 10000 spot/㎡
White balance brightness ≥7500 cd/㎡
Horizontal view angle ≥110°
Vertical view angle ≥75°
Continuous working hours 8 hours
Luminous point color combination 1R1PG1B
Normal display mode 1024×768
Average power dissipation 500~1000 W/㎡
Drive mode 1/4 scan
Operating temperature -20~+85℃
Corollary equipment Mainframe, laptop, etc.
Multimedia demonstration Self rescue measures, knowledge of fire escape, fire scene, identify and how to use fire fighting device
Home fire safety common sense Display the usage of electric, gas, fire. Suppresses the initial fire, alarm scene and suppresses electrical fire scene
Interactive experience type fire extinguishing system

By remind the experiencer about the fire type, which fire extinguisher type to chose, simulating practical fire situation, to improve the audience’s interest and practical ability, strengthen the experience and publicity requirements of the vehicle.

Performance: 1. Continuous working for long time 2. Easy operation 3. The system can be upgraded



2. Vehicle

Dimension (L×W×H) 8000×2260×3650mm
Gross weight 7880kg
Complete vehicle shipping mass 7730kg
Communication modules quantity 13 sets
Seat (inc. driver) 2
Rated power 139kw



3.Chassis

Manufacturer Isuzu
Model QL11009MARY
Drive type 4x2
Wheelbase 4475mm
Max. speed 100km/h
Min. turning diameter <15
Engine type In-line four-cylinder, inter-cooling, direct injection diesel engine
Model 4HK1-TCG40
Rated power 139kw
Max. torque 510N•m
Emission standard China IV
Clutch Spiral spring
Gearbox model Manual, 6 forward gear



4. Power generation system

Vehicle-mounted electric generator EH1130 Honda
Rated output power 11kw
Power factor 1
Voltage 220V
Current 50A
Frequency 50HZ
Fuel gasoline
Control box
Power output 2x 220V power output socket
Power input 1x 220V power input socket
Control source 24V
Protective measures Installed voltage stabilizer and outage controller



Two Seats Commercial Fire Trucks Japanese Chassis With 13 Sets Communication Modules 0
