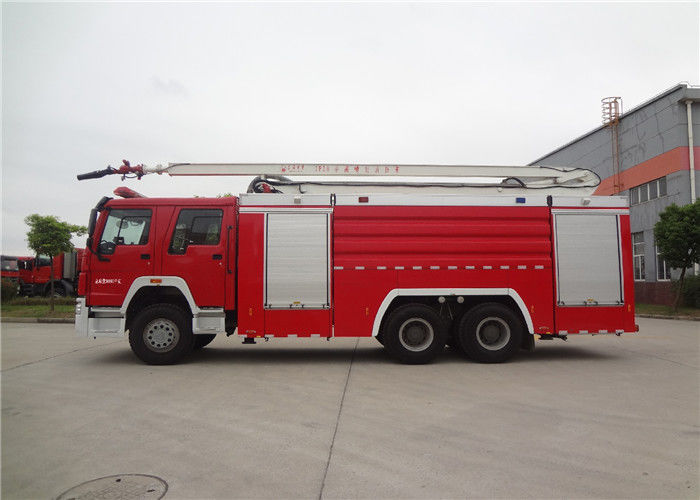

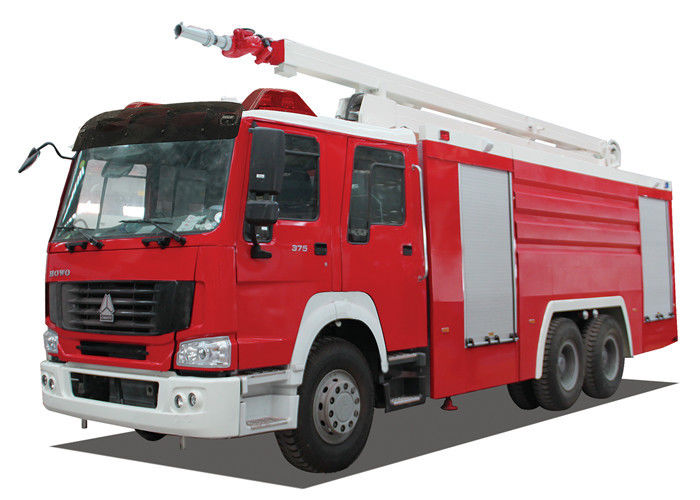

20m Two-Fold Telescopic Boom Water Tower Fire Truck with Remote Control Monitor

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

20m Two-Fold Telescopic Boom Water Tower Fire Truck with Remote Control Monitor

20m Two-Fold Telescopic Boom Water Tower Fire Truck with Remote Control Monitor
20m Two-Fold Telescopic Boom Water Tower Fire Truck with Remote Control Monitor 20m Two-Fold Telescopic Boom Water Tower Fire Truck with Remote Control Monitor

Large Image :  20m Two-Fold Telescopic Boom Water Tower Fire Truck with Remote Control Monitor

Product Details:
Place of Origin: Shanghai,china
Brand Name: SINOTRUK HOWO,ISUZU or MAN (optional )
Certification: ISO9001,CCC
Model Number: JDX5310JXFJP20
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Exporting standard package or customized packing
Delivery Time: 90days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300units/year
Detailed Product Description
Dimension: 10970×2480×3900 (mm) Gross Weight: 31000(kg)
Working Height: 20m Wheel Base: 4500 + 1350(mm)
Driving: 6x4 Max Loading: 28000Kg
Seat: 2+4 Seats (4 Doors) Max. Power: 320KW
Product Name: Water Tower Fire Truck Other Name: Water Tower 20m Fire Vehicle
High Light:

heavy duty fire truck

,

fire engine vehicle

20m working height Two-Fold Telescopic Boom Water Tower Fire Truck with Remote Control Monitor



Waterway operation panel

At the top of pump room trail.

Alarm lamp and stroboscope lamp

In front of the vehicle roof equipped with TBD035181 long row alarm lamp, LTE595 stroboscope lamp on both side.

Controller

Finland EPEC2024 imported with original packaging

Remote Control

Italian AUTEC wireless remote controller imported with original packaging, effective working radius 100m.



Boom structure

2 folding boom, welded with high-strength steel
Max. working height 20m
Max. working radius 9m
Pump flow 100L/s
Boom extending time ≤60s
Outrigger extending time ≤35s
Hydraulic system pressure 20MPa
Max. wind velocity 12.5m/s
Outrigger longitudinal and transverse 5200×2070mm
Allowed working range: Shown as pic1



Vehicle



Dimension (L×W×H) 10970×2480×3900 (mm)
Chassis brand Sinotruk Howo
Seat (inc. driver) 2+4 seats (4 doors)
Max. power 320KW

Chassis





Driving 6×4
Cabin 1+1+4
Wheel base 4500+1350 (mm)
Curb weight 14550Kg
Full loading weight 28000Kg
Max. running speed 100Km/h
Engine type V type six-cylinder, inter-cooling, electronic unit pump diesel engine
Model OM501LA.IV/4
Engine power 320Kw/1800rpm
Maximum torque 2100N.M
Emission standard EURO IV
Clutch Monolithic, dry
Gearbox Manual-automatic





20m Two-Fold Telescopic Boom Water Tower Fire Truck with Remote Control Monitor 0



FAQ

1. Q: Why should we choose you ?

A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.



2. Q:What's the delivery time?

A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

c. European brand chassis 9 months upon receipt of advance deposit.



3. Q:What's your payment method?

A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

A:All the packing comply with exporting standard.



Any other questions, please do not hesitate to contact with us.
