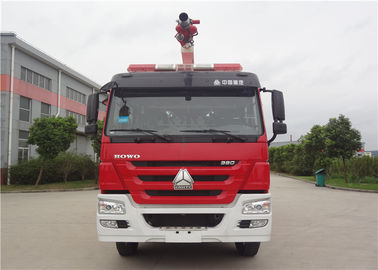

6x4 Drive 20 Meters Water Tower Fire Truck With Two-fold Waterway Boom

6x4 Drive 20 Meters Water Tower Fire Truck With Two-fold Waterway Boom

  • High Light

    heavy duty fire truck

    ,

    fire engine vehicle

  • Gross Weight
    31000(kg)
  • Wheel Base
    4500 + 1350(mm)
  • Driving
    6x4
  • Max Loading
    28000Kg
  • Seat
    2+4 Seats (4 Doors)
  • Max. Power
    320KW
  • Working Height
    20m
  • Product Name
    20 Meters Water Tower Fire Truck
  • Place of Origin
    Shanghai,china
  • Brand Name
    Benz
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5310JXFJP20
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

6x4 Drive 20 Meters Water Tower Fire Truck With Two-fold Waterway Boom

6x4 Drive 20 Meters Water Tower Fire Truck With Two-fold Waterway Boom

JP20 water tower fire truck, firefighting vehicle is adapted by Mercedes Benz Actros3344. Equipped with high strength steel two-folding boom. The working height is 20 meters. It's widely used on high building and factory fire fighting and rescue.



Vehicle



Dimension (L×W×H) 10970×2480×3900 (mm)
Chassis brand Mercedes Benz
Seat (inc. driver) 2+4 seats (4 doors)
Max. power 320KW

Chassis





Manufacturer Germany Mercedes Benz
Model Actros3344
Driving 6×4
Cabin 1+1+4
Wheel base 4500+1350 (mm)
Curb weight 14550Kg
Full loading weight 28000Kg
Max. running speed 100Km/h
Engine type V type six-cylinder, inter-cooling, electronic unit pump diesel engine
Model OM501LA.IV/4
Engine power 320Kw/1800rpm
Maximum torque 2100N.M
Emission standard EURO IV
Clutch Monolithic, dry
Gearbox Manual-automatic



Boom structure

2 folding boom, welded with high-strength steel
Max. working height 20m
Max. working radius 9m
Pump flow 100L/s
Boom extending time ≤60s
Outrigger extending time ≤35s
Hydraulic system pressure 20MPa
Max. wind velocity 12.5m/s
Outrigger longitudinal and transverse 5200×2070mm
Allowed working range: Shown as pic1




Painting

Red paint: Cabin, storage department, pump room (except roller shutter doors)

White paint: Boom, rotary table, fender

(painting also is designed as per your clients’ requirements).



Onboard documents

  1. Vehicle operation and maintenance manual
  2. Chassis operating manual
  3. Chassis operation and maintenance manual
  4. Chassis quality warranty card
  5. Chassis certificate, vehicle certificate, 3C logo
  6. Engine code copy
  7. Chassis code copy

6x4 Drive 20 Meters Water Tower Fire Truck With Two-fold Waterway Boom 0



FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.



2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.



3. Q:What's your payment method?

A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
