Product Details:
Payment & Shipping Terms:
|
| Gross Weight: | 31000(kg) | Working Height: | 20m |
|---|---|---|---|
| Wheel Base: | 4500 + 1350(mm) | Driving: | 6x4 |
| Seat: | 2+4 Seats (4 Doors) | Max. Power: | 320KW |
| High Light: | heavy duty fire truck,fire engine vehicle |
||

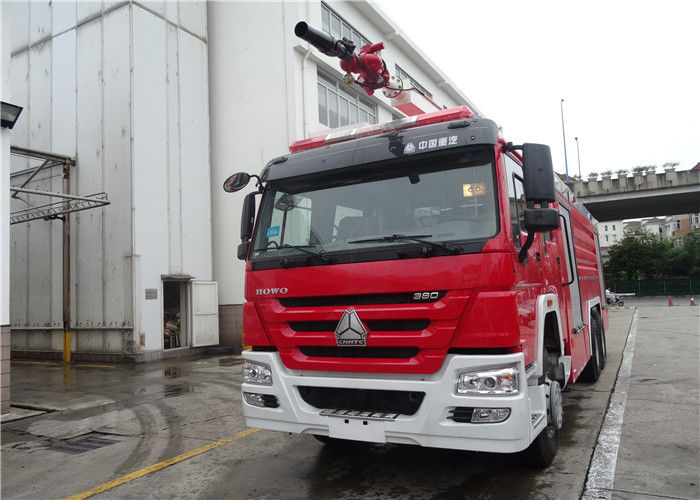

imported chassis Water 6ton Foam 4ton 6X4 water tower fire truck 28ton 20m working height
Fire monitor
| Model | PLKD80 remote controlled Monitor |
| Flow rate | 4800L/min |
| Pressure | ≤1.2MPa |
| Range | water≥75m ,foam≥70m |
| Swivel/up/depression angle | -45°～ +90° |
Alarm lamp and stroboscope lamp
In front of the vehicle roof equipped with TBD035181 long row alarm lamp, LTE595 stroboscope lamp on both side.
Controller
Finland EPEC2024 imported with original packaging
Boom structure
| 2 folding boom, welded with high-strength steel | |
| Max. working height | 20m |
| Max. working radius | 9m |
| Pump flow | 100L/s |
| Boom extending time | ≤60s |
| Outrigger extending time | ≤35s |
| Hydraulic system pressure | 20MPa |
| Max. wind velocity | 12.5m/s |
| Outrigger longitudinal and transverse | 5200×2070mm |
| Allowed working range: Shown as pic1 | |
|
Vehicle
|
Dimension (L×W×H) | 10970×2480×3900 (mm) |
| Chassis brand | Mercedes Benz | |
| Seat (inc. driver) | 2+4 seats (4 doors) | |
| Max. power | 320KW | |
|
Chassis
|
Manufacturer | Germany Mercedes Benz |
| Model | Actros3344 | |
| Driving | 6×4 | |
| Cabin | 1+1+4 | |
| Wheel base | 4500+1350 (mm) | |
| Curb weight | 14550Kg | |
| Full loading weight | 28000Kg | |
| Max. running speed | 100Km/h | |
| Engine type | V type six-cylinder, inter-cooling, electronic unit pump diesel engine | |
| Model | OM501LA.IV/4 | |
| Engine power | 320Kw/1800rpm | |
| Maximum torque | 2100N.M | |
| Emission standard | EURO IV | |
| Clutch | Monolithic, dry | |
| Gearbox | Manual-automatic |
