2200L watar and 500L Foam Tender Fire Fighting Truck With Imported Chassis 5 Seats

2200L watar and 500L Foam Tender Fire Fighting Truck With Imported Chassis 5 Seats

  • High Light

    fire rescue vehicles

    ,

    modern fire truck

  • Overall
    5270×2200×2980 Mm
  • Gross Weight
    7800 Kg
  • Water Capacity
    2200 L
  • Foam Capacity
    500 L
  • Wheel Base
    2790 Mm
  • Drive Type
    4x2 Drive
  • Max. Speed
    110km/h
  • Product Name
    Foam Fire Fighting Truck
  • Place of Origin
    shanghai China
  • Brand Name
    IVECO
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5080GXFPM30/Y
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

2200L watar and 500L Foam Tender Fire Fighting Truck With Imported Chassis 5 Seats

2200L watar and 500L Foam Tender Fire Fighting Truck With Imported Chassis 5 Seats

Vehicle basic data

Dimension (L×W×H) 5270mm×2200mm×2980mm
Gross weight 7800 (kg)
Wheel base 2790mm
Water/ foam tank capacity 2200L /500L
Max. engine power 160kW(217hp)/2700r/min
Emission standard China V
Max. speed 110km/h
Seat (inc. driver) 2+3
Approach angle 18°
Departure angle 30°
Fire pump flow 1.0MPa, 32L/s



Chassis

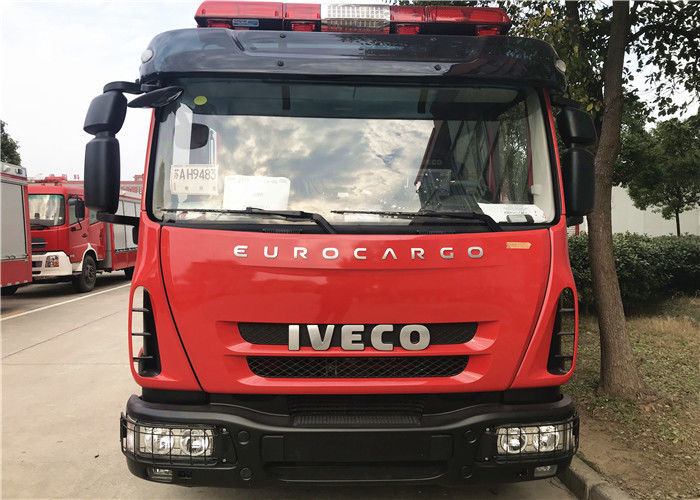

Manufacturer FIAT IVECO
Model ML 100E22
Driving 4×2
Min. turning radius 5.2m
Min. ground clearance Front 169mm, rear 172mm
Chassis Net weight 10910Kg
Approach angle 18°
Departure angle 18°
Engine IVECO TECTOR 6, F4AE3681B*S
Max. authorized total mass 10000kg
Displacement 5.88L
Max. torque 680N•m/1200~2100r/min
Max. power 160kW (217HP)/2700r/min
Fuel tank 115L plastic fuel tank, 25L heating type urea tank, Recor oil-water separator with heating



Fire pump

Manufacturer HALE
Model AP32
Water flow 1.0MPa 32L/s
Max. suction depth 7m
Priming time ≤35s





Fire fighting system

Suction inlet 1×DN100 butterfly valve, electric and manual operation

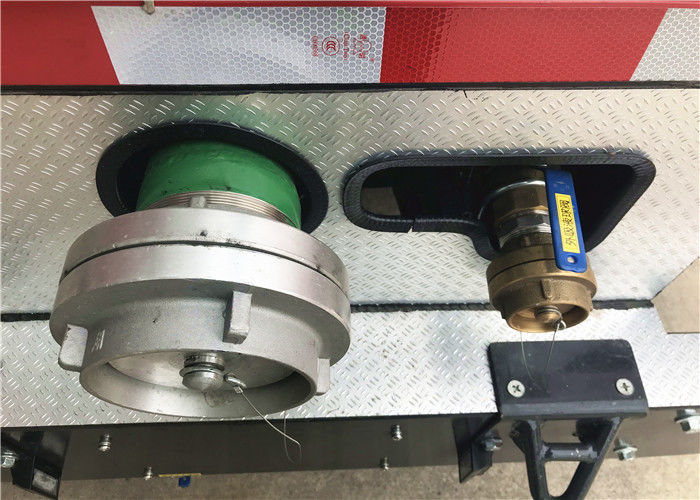

Outside Suction inlet 1×DN125 suction coupling with stainless steel butterfly valve and lid cover, snap- type
Outlet 2×DN80 ordinary outlet with manual ball value, insertion-type
Pump outlet 10mm stainless steel ball valve, manual
Outside liquid inlet Use G1 1/2’’ manual ball valve and KY40 solenoglyphic tooth coupling

Onboard document

  1. Vehicle operation and maintenance manual
  2. Chassis operating manual
  3. Chassis operation and maintenance manual
  4. Chassis quality warranty card

Electrical system

The main lights in the cab at the top of the long row of lights, public address system with Wail-Yelp alarm whistle, including microphone and 100W loudspeaker. 2 Red and blue alarm lamp on both side. A 70w searchlight is set on the roof of the vehicle.



Painting

Red paint: cab, body (shutter doors, except decorative strip)



2200L watar and 500L Foam Tender Fire Fighting Truck With Imported Chassis 5 Seats 0

​
