Sinotruk Chassis 6X4 Drive Fire Engine Ladder Truck With Direct Injection Diesel Engine

Sinotruk Chassis 6X4 Drive Fire Engine Ladder Truck With Direct Injection Diesel Engine

  • High Light

    water tender fire truck

    ,

    fire pumper truck

  • Max. Power
    276kw
  • Gross Weight
    33320kg
  • Max. Speed
    85km/h
  • Wheelbase
    4600+1350mm
  • Dimension
    10180×2500×3650mm
  • Shipping Mass
    15270kg
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    Sinotruk
  • Certification
    ISO9001/CCC
  • Model Number
    JDX5330GXFSG180/H
  • Minimum Order Quantity
    1UNIT
  • Price
    Negotiable
  • Delivery Time
    90days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram

Sinotruk Chassis 6X4 Drive Fire Engine Ladder Truck With Direct Injection Diesel Engine

Sinotruk Chassis Water Tanker Fire Truck With Direct Injection Diesel Engine 6X4 Drive





Fire pump

Manufacturer SHANGHAI XIONGZHEN
Model CB10/100-XZ
Flow 90L/s
Pressure 1.0MPa
Water diversion Piston primer pump
Max. vacuum degree ≥85 kPa
Priming time ≤80s

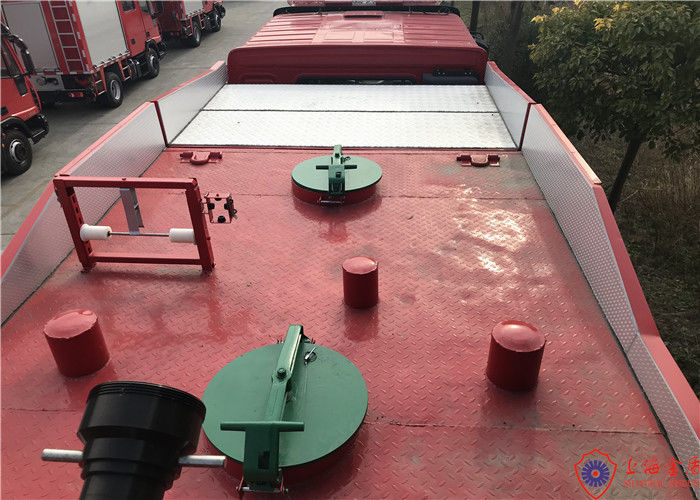

Pedal plate

Location: At the bottom of roller shutter door.

Material: Steel frame covered by aluminum alloy checkered plate

Structure: adopt the gas springs plus shutter fasten, safe and

Reliable, each petal plate bearing ≥150Kg

Vehicle

Dimension (L×W×H) 10180×2500×3650mm
Gross weight 33320kg
Complete vehicle shipping mass 15270kg
Seat (inc. driver) 6
Max. power 276kw



Chassis

Manufacturer Sinotruk HOWO
Model ZZ5347V4647D5
Drive type 6x4
Cab Flattop four door length
Wheelbase 4600+1350mm
Max. speed 85km/h
Min. turning diameter <22m
Approach angle 16°
Departure angle 12°
Engine type Pressure combustion, in-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine
Model D10.38-40
Max. power 276kw
Max. torque 1560N•m
Emission standard China IV/ Euro IV
Clutch Monolithic, dry
Gearbox model Manual 10forward gear

Painting

Red paint: cab, body (shutter doors, except decorative strip)

White: fender-guard
