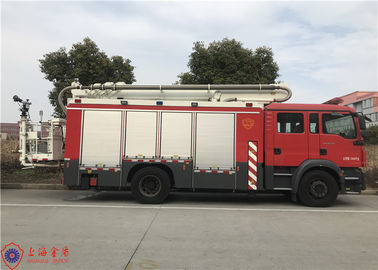

Short Adjustment Time 4x2 Drive Aerial Ladder Fire Truck 25m Working Height
-
Highlight
fire engine ladder truck
,remote control ladder fire truck
-
Chassis BrandMan
-
Drive4x2
-
Wheel Base4250mm
-
Ladder Section4
-
Seat2
-
Max Speed100km/h
-
Working HeightMax 25 Meters
-
Rated Power177 Kw
-
Key Words25 Meters Aerial Ladder Fire Vehicle
-
Place of OriginSHANGHAI,CHINA
-
Brand NameCIMC Jindun
-
CertificationISO9001,CCC
-
Model NumberDG25
-
Minimum Order Quantity1 unit
-
PriceNegotiable
-
Packaging DetailsExporting standard package or customized packing
-
Delivery Time90 days after sign contract
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability300 units/year
Short Adjustment Time 4x2 Drive Aerial Ladder Fire Truck 25m Working Height
Short Adjustment Time 4x2 Drive Aerial Ladder Fire Truck 25m Working Height
Main parameters and configuration
1, vehicle
| Dimensions | 8650 * 2450 * 3500 mm |
| Full load allowed total mass | 17400 kg |
| Vehicle kerb mass | 15700 kg |
| The number of passengers | 2(including the driver) (person) |
| Maximum power | 177/240 kW/hp |
2, chassis
| manufacturer | Isuzu |
| drive form | 4X2 |
| cab | single row cab |
| wheelbase | 4250 mm |
| chassis weight | 4710 Kg |
| maximum allowable load | 12700Kg |
| engine | 6 cylinder diesel engine |
| type | 6HK1-TCN |
| maximum engine power | 177Kw/ 2400r/min |
| maximum torque | 706N.M/1450rpm |
| single | single, dry clutch |
| transmission | MZW6P |
| taking full power | broken shaft type |
| transmission power | customers with |
Main Parameter
| no | name | supplier |
| 1 | chassis | isuzu |
| 2 | fire pump | HALE RSD |
| 3 | fire monitor | AKRON |
| 4 | boom | jindun |
| 5 | slewing support | xuzhouxinda |
| 6 | hydraulic oil pump | bejinghuade |
| 7 | get on multitandem valve | DANFOSS |
| 8 | get off multitandem valve | GALTECH |
| 9 | balance valve | USA SUN |
| 10 | operation handle | UK P&G |
| 11 | control | EPEC |
| 13 | checking | Baturu |
| 14 | ultrasonic sensor | BALLUFF |
