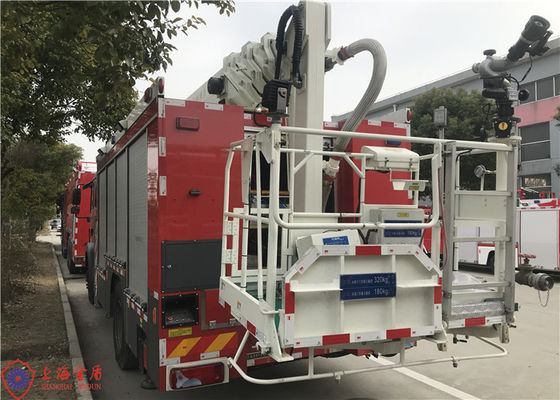

4x2 Drive 25 Meters Working Height Aerial Ladder Fire Truck Short Adjust Time

4x2 Drive 25 Meters Working Height Aerial Ladder Fire Truck Short Adjust Time

  • High Light

    fire engine ladder truck


    remote control ladder fire truck

  • Overall Size
    8650 * 2450 * 3500mm
  • Wheel Base
    4250 Mm
  • Ladder
    4 Section Fold
  • Seats
    2 Set
  • Max Working Height
  • Arm Working Range
  • Arm Rotation Angle
  • Product Name
    Telescopic Work Platform Aerial Fire Truck
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

4x2 Drive 25 Meters Working Height Aerial Ladder Fire Truck Short Adjust Time

25 Meters Max Height 4x2 Drive Aerial Ladder Fire Truck Short Adjustment Time


Main parameters and configuration


1, Vehicle

Dimensions 8650 * 2450 * 3500 mm
Full load allowed total mass 17400 kg
Vehicle kerb mass 15700 kg
Seats (including the driver) 2 sets
Maximum power 177/240 KW/HP


2, Chassis

Manufacturer Isuzu
Model Isuzu FTR34L
Drive form 4X2
Cab single row cab
Wheelbase 4250 mm
Chassis weight 4710 Kg
Maximum allowable load 12700Kg
Engine 6 cylinder diesel engine
Engine type 6HK1-TCN
Maximum engine power 177Kw/ 2400r/min
Maximum torque 706N.M/1450rpm
Clutch single, dry clutch
Transmission MZW6P
Taking full power broken shaft type
Transmission power customers


3, On the arm

The arm is four section telescopic boom, welded by HG70 high strength steel, the specific parameters as below:

Maximum height of the working platform 25m
Maximum working range 14.5m
The 3.3 main boom luffing angle -18 degrees to 80 degrees
Rotation angle 360 degrees continuously
Pump rated flow rate 60L/s @1.03Mpa
Arm movement time ≤100S
Leg movement time <30S
Hydraulic system pressure 21MPa
Maximum allowable speed 12.5m/s
Leg span 4450 * 4450mm



Equipment & Spare parts

no name and model unit qty. remarks
1 o ring 14×2.65G pcs 6 GB/T3452.1-1992
2 ring 11.2×2.65G pcs 4 GB/T3452.1
3 ring 22.4×2.65G pcs 4 GB/T3452.1
4 ring 71×3.55G pcs 1 GB/T3452.1
5 ring 118×5.3G pcs 1 GB/T3452.1
6 ring 150×3.55G pcs 1 GB/T3452.1
7 ring 140×5.3G pcs 3 GB/T3452.1
8 ring 128×5.3G pcs 1 GB/T3452.1
9 checking switch SZL-WL-A pcs 1
10 travel switch SZL-WL-B pcs 1
11 travel switch SZL-WL-E Pcs 1
12 fuse tube 5×20 Pcs 10 10A
13 fuse tube 5×20 pcs 20 20A



4x2 Drive 25 Meters Working Height Aerial Ladder Fire Truck Short Adjust Time 0



1. Q: Why should we choose you ?

    A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

        b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

        c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.


2. Q:What's the delivery time?

    A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

         b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

         c. European brand chassis 9 months upon receipt of advance deposit.


3. Q:What's your payment method?

    A: T/T and L/C are preferred.


4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.


5. Q: How is the packing?

    A:All the packing comply with exporting standard.


6. Q:What's your main products?

    A:Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.


Any other questions, please do not hesitate to contact with us.
