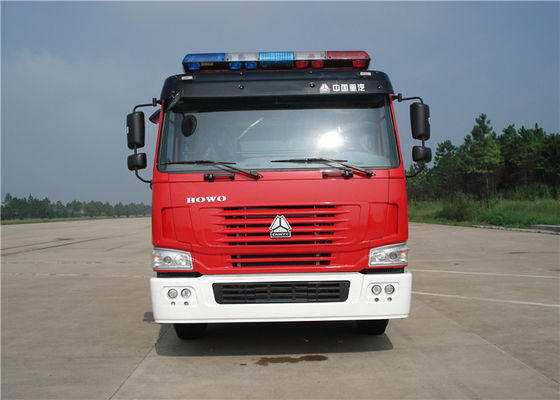

Sinotruk Six Seats Water Tanker Fire Truck Pump Flow 60L/S Aluminum Water Tank 5684L

Sinotruk Six Seats Water Tanker Fire Truck Pump Flow 60L/S Aluminum Water Tank 5684L

  • High Light

    fire pumper truck

    ,

    vacuum tanker fire truck

  • Dimension
    8125×2480×3350 (mm)
  • Gross Weight
    15330 (kg)
  • Seat
    2+4
  • MaxSpeed
    95km/h
  • Water Capacity
    5684L
  • Pressure/ Flow
    1.0MPa/60L/S
  • Chassis Brand
    Sinotruk Howo
  • Product Name
    Six Seats Water Tanker Fire Truck
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    CIMC Jindun
  • Certification
    ISO9001/CCC
  • Model Number
    JDX5150GXFSG60
  • Minimum Order Quantity
    1UNIT
  • Price
    Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    350 units/year

Sinotruk Six Seats Water Tanker Fire Truck Pump Flow 60L/S Aluminum Water Tank 5684L

Sinotruk Six Seats Water Tanker Fire Truck Pump Flow 60L/S Aluminum Water Tank 5684L



The SG60 six seats water tanker fire truck is adapted from Sinotruk Howo chassis, 4x2 driving with lengthen cabin. Rated power of the original engine is 206kw. The water tanker fire vehicle equipped with HALE pump which flow 60L/s and local manul control fire monitor, carries 5684kg water. It's suitable for public security fire brigade, petrochemical enterprise, port, dock and other professional fire bridage in large and medium-sized city.



Chassis

Manufacturer Sino howo
Model ZZ5207M4617D5
Drive type 4x2
Cab Flattop four-door lengthen
Wheelbase 4600mm
Chassis net weight 7230kg
Max. load 20490Kg
Max. speed 90km/h
Min. turning diameter <18.6m
Engine type Inline six-cylinder, four-stroke, water-cooling, inter-cooling engine
Model D10.28-40
Max. power 206Kw/1900r/min
Emission standard China IV/Euro IV
Clutch Monolithic, dry
Gearbox model Manual 9JS119
Tyre 12.00—20



Fire pump

PUMP Manufacturer HALE
Model 50FB-U60-U ordinary pressure fire pump
Pressure/ Flow 1.0MPa/60L/S
Primer type Electric primer pump
Max. vacuum degree >85 kPa
Priming time ≤50s
Priming depth 7 m



Pipeline

Outlet pipeline

4×DN80 ordinary pressure outlet

1×DN50 ball valve

Suction inlet

1×DN150 outside inlet

1×DN150 valve

Monitor pipeline

1×DN100 monitor pipeline

1×DN100 butterfly valve

Residual water outlet Water cock
Cooling water pipeline The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline.



Pump drive system

Model YTQ600F sandwich type
Manufacturer YANGZHONG
Transmission shaft High balance precision



Pedal plate

Location: At the bottom of roller shutter door.

Material: Steel frame covered by aluminum alloy checkered plate.

Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.

 Sinotruk Six Seats Water Tanker Fire Truck Pump Flow 60L/S Aluminum Water Tank 5684L 0

FAQ:

1. Q:Are you a factory or a trade company?

    A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.



2. Q:Where is your factory located?

    A:We are located in Shanghai Province,China.



3. Q:What's your payment method?

    A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

    A:All the packing comply with exporting standard.



6. Q: What's your main product?

    A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.



Any other questions, please do not hesitate to contact with us.
