4x2 chassis 260 L/Min Flow Light Fire Truck with Halogen Lamps

4x2 chassis 260 L/Min Flow Light Fire Truck with Halogen Lamps

  • High Light

    light up fire truck

    ,

    light rescue fire trucks

  • Gross Weight
    8150kg
  • Number Of Seats
    3
  • Poles
    4
  • Frequency
    50Hz
  • MaxSpeed(km/h)
    95
  • Rated Power
    139kw
  • Auxiliary Lights
    2 Units Halogen Lamps
  • Product Name
    Light Fire Truck With Halogen Lamps
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    ISUZU
  • Certification
    ISO9001/CCC
  • Model Number
    JDX5080TXFZM50
  • Minimum Order Quantity
    1UNIT
  • Price
    Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

4x2 chassis 260 L/Min Flow Light Fire Truck with Halogen Lamps

4x2 chassis 260 L/Min Flow Light Rescue Fire Trucks Halogen Lamp Tanker Fire Truck

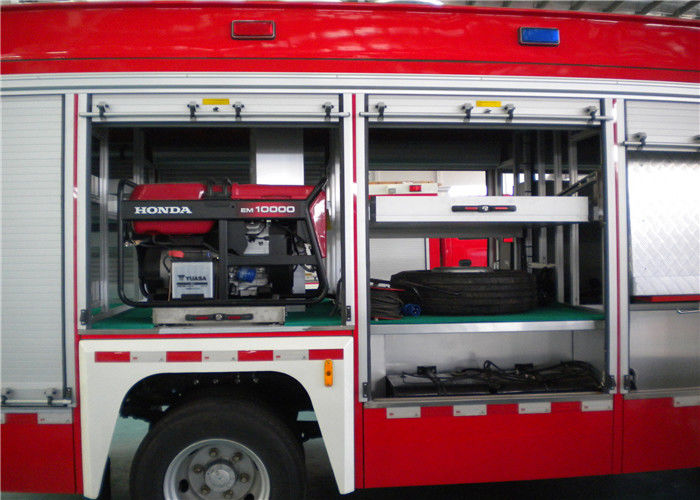

Auxiliary lighting

2x halogen lamp

Power: 2×1500 W

Voltage: 220VAC



Air compressor

Model: QW-400

Type: maintenance-free mute oilless air compressor

Power: 2.5 kW

Flow: 260 L/min

Air supply manage: oil-water separator pressure regulating valve



Vehicle

Dimension (L×W×H) 6705×2200×3210mm
Gross weight 8150kg
Complete vehicle shipping mass 3925kg
Electric generator rated power 50kw
Seat (inc. driver) 3
Rated power 139kw

Chassis

Manufacturer Isuzu
Model QL11009KARY
Drive type 4x2
Cab Original X-P301
Wheelbase 3815mm
Max. speed 95km/h
Min. turning diameter <15
Engine type In-line four-cylinder, high pressure common rail, water inter-cooling
Model 4HK1-TCG40
Max. power 139kw
Max. torque 510N•m
Emission standard China IV
Clutch Diaphragm spring, monolithic, dry, hydraulic power assisted
Gearbox model Manual, 6 forward gear
