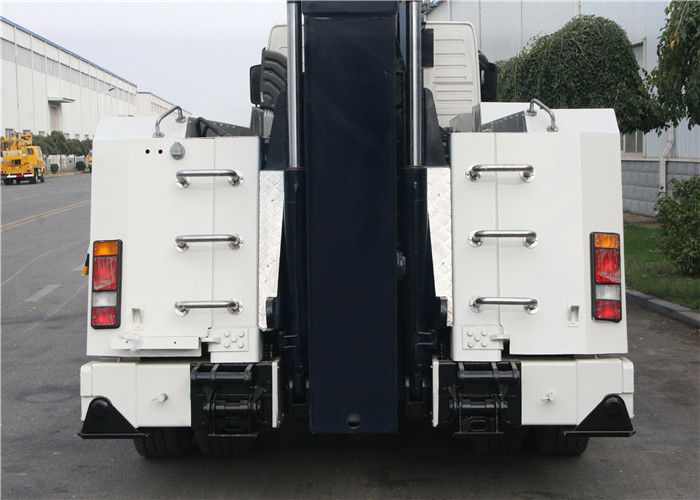

99 km/h max speed KaiFan Heavy-duty H Series VOLVO chassis Road Wrecker 3 person 8x4 drive
1. Working Range
KFM5442TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
2 ,Main Parameters
| Items | Unit | Value | |
| Lifting Structure | Rated Lifting weight | kg | 13765 |
| Max. Lifting weight of original place | kg | 18000 | |
| Max. Lifting weight of full extension boom | kg | 8000 | |
| Rated towing weight | kg | 44000 | |
| Max. Designed towing weight | kg | 60000 | |
| Effective length of boom | mm | 3350 | |
| Extension traveling of boom | mm | 1700 | |
| Folding angle of boom | ° | 90 | |
| Under lift Structure | Max. Rated hanging weight | kg | 25000 |
| The height from hook to the ground | mm | 13430 | |
| Max. Extension traveling of lifting boom | mm | 6000 | |
| Rotation angle | ° | 360 | |
| Numbers of winch | piece | 2 | |
| Rated pulling power of winch | kg | 2×15000 | |
| Dia. Of steel cable | mm | 22.4 | |
| Length of steel cable | m | 40 | |
| Min. Speed of steel cable | m/min | 4 | |
| Rotation angle | ° | 65 | |
|
Vehicle |
External dimension | mm | 10741×2500×3366 |
| Chassis model | FM400 84RB | ||
| Drive | 8×4 | ||
| Axle base | mm | 1995+4405+1370 | |
| The whole weight of empty load | kg | 30040 | |
| Load of front axle of empty load | kg | 14380 | |
| Load of rear axle of empty load | kg | 15660 | |
| The whole weight of full load | kg | 44000 | |
| Load of front axle of full load | kg | 9000/9000 | |
| Load of rear axle of full load | kg | 13000/13000 | |
| Wheel base (front/rear axle) | mm | 2019/1834 | |
| Front suspension | mm | 1362 | |
| Rear suspension | mm | 935 | |
| Approach angle | º | 16.6 | |
| Departure angle | º | 20 | |
| Min. Turning diameter | m | 24.6 | |
| Min. Ground clearance | mm | 306 | |
| Max. Speed | km/h | 99 | |
| Grade ability | % | 30 | |
| Gas consumption per one hundred miles(diesel oil) | L | 35.4 | |
| Engine model | - | D13 | |
| Engine emission | L | 12.8 | |
| Rated power | kw/r/min | 400/294/1400～1800 | |
| Torque | n·m/r/min | 2000/1050～1400 | |
| Fuel type | Diesel | ||
| Standard of emission | EN III | ||
| Tire size | 315/80R22.5 | ||
| Persons | 3 | ||
3,Standard Equipments
1. VOLVO FM400 84RB
2. Main boom structure assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Control structure assembly
6. Chain wheel and hanging assembly
7. Winch assembly (include winch clutch, impaction device)
8. Steel body assembly
9. Tool box assembly
10. Light stands assembly
11. Alarm device
12. Hydraulic system
13. Hydraulic system over voltage protection device
14. Electric system
15. PTO Warner
16. Combination lamps
17. Hydraulic duel rear outrigger assembly
18. Lifting assembly
19. Y wheel lift
20. Steel wire rope
21. Output of electronic device
22. Standard spare tire
23. Safety chains
24. Vulnerable parts attachment
