Light DUTY ENGINE EMISSION 3760ML KAIFAN DIESEL ROAD WRECKER TRUCK

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

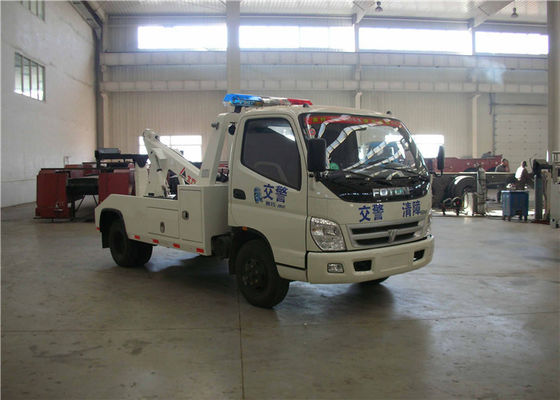

Light DUTY ENGINE EMISSION 3760ML KAIFAN DIESEL ROAD WRECKER TRUCK

Light DUTY ENGINE EMISSION 3760ML KAIFAN DIESEL ROAD WRECKER TRUCK
Light DUTY ENGINE EMISSION 3760ML KAIFAN DIESEL ROAD WRECKER TRUCK Light DUTY ENGINE EMISSION 3760ML KAIFAN DIESEL ROAD WRECKER TRUCK

Large Image :  Light DUTY ENGINE EMISSION 3760ML KAIFAN DIESEL ROAD WRECKER TRUCK

Product Details:
Place of Origin: China
Brand Name: KaiFan
Certification: IQNET,ISO
Model Number: KFM5071TQZ13P –SQZ1503PO
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Factory price. Negotiable
Packaging Details: Exporting standard package or customized packing
Delivery Time: 3months
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300/year
Detailed Product Description
Altitude: 0-4500m Temperature: -35℃--+45℃
Grade Ability: 30% Max. Speed: 95(km/h)
Engine Model: CA4DC2-12E3 Persons: 3
Engine Emission: 3760ml Wind Force: ≤8degree
Product Name: Custom Wrecker Trucks
High Light:

heavy wrecker trucks

,

custom wrecker trucks

Engine emission 3760ml KaiFan Light-duty P Series (FOTON) Road Wrecker 85kw rated power Diesel fuel


A,Main Parameters

ItemsData
Boom StructureRated towing weight7400 kg
Max. Lifting weight1500 kg
Max. Lifting weight of full extending boom800 kg
Effective length of boom1928 mm
Extension traveling of boom1200 mm
Elevation of boom (upper/ lower)7~-10 °
Platform StructureMin. Elevation of full extending platform11 °
Max. Loading of platform3000 kg
External dimension of platform (length×width×height)5200×2120×57 mm
Ground clearance of cage floor1041 mm
Max. Pulling power of winch4000 kg
Dia. Of steel cable10 mm
Length of steel cable25 m
Min. Speed of steel cable2.5 m/min
Vehicle
Parameters
External dimension7555×2200×2560 mm
Chassis modelBJ1071VCJFA-S
Drive4×2
Axle base3800 mm
The whole weight of empty load4595 kg
Load of front axle of empty load1815 kg
Load of rear axle of empty load2780 kg
The whole weight of full load7495 kg
Load of front axle of full load2850 kg
Load of rear axle of full load4645 kg
Wheel base (front/rear axle)1685/1600 mm
Front suspension1120 mm
Rear suspension2220 mm
Approach angle22 º
Departure angle
Max. Speed95 km/h
Max. Grade ability≥28 %
Min. Turning diameter≤16 m
Min. Ground clearance190mm
Engine modelCA4DC2-12E3
Rated power88/3200 kw/r/min
Engine emission3168 ml
Max. Torque320/1900-2100 n·m/r/min
Fuel typeDiesel
Standard of emissionEN III
Tire size7.50-16,8.25-16
Persons3
Optional EngineEngine modelYZ4DB1-30
Rated power95 kw
Engine emission4087 ml
Engine modelCY4102-C3C
Rated power88 kw
Engine emission3856 ml
Rated power85 kw
Engine emission3760 ml



B,Working Condition
1,Altitude: 0-4500m
2,Temperature: -35℃--+45℃
3,Relative humidity: 80%
4,Wind force: ≤8degree

C,Working Range
KFM5071TQZ13P Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind


D,Standard Equipments
1. FOTON BJ1071VCJFA-S

2. Main boom structure assembly

3. Vice boom assembly

4. Hanging hook assembly

5. Control structure assembly

6. Winch assembly (include winch clutch, impaction device)

7. Steel body assembly

8. Tool box assembly

9. Light stands assembly

10. Alarm device

11. Hydraulic system

12. Hydraulic system over voltage protection device

13. Electric system

14. PTO Warner

15. Combination lamps

16. Steel wire rope (including hook) (25m/pcs)

17. Standard spare tire

18. L wheel lift

19. Bind belt

20. Vulnerable parts attachment
