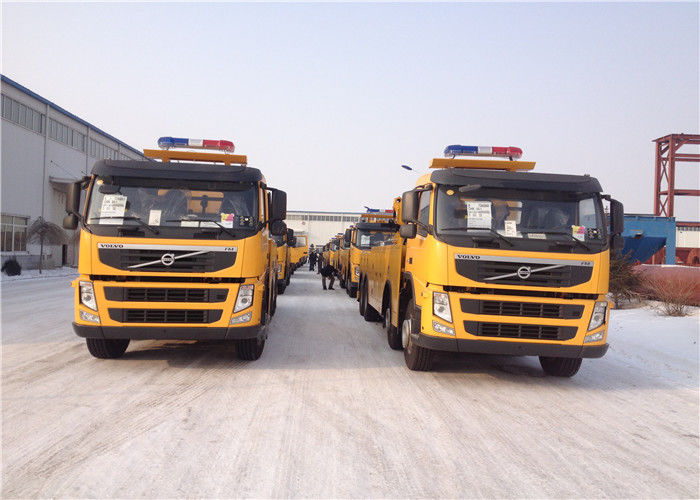

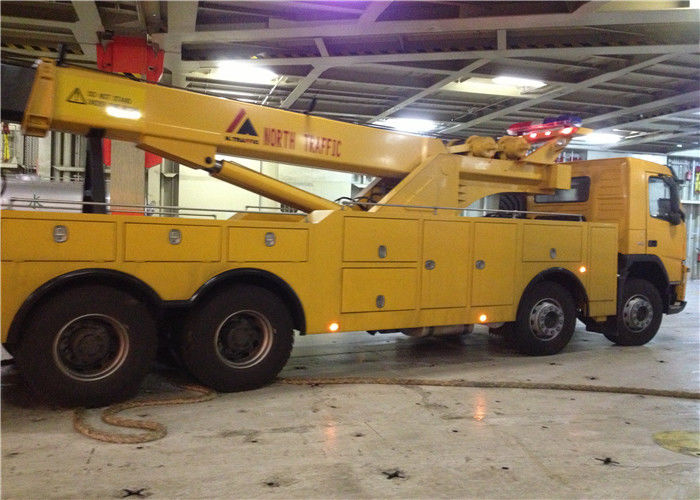

10×4 Volvo Chassis Diesel Fuel Heavy Duty Wrecker Truck for Road Rescue

10×4 Volvo Chassis Diesel Fuel Heavy Duty Wrecker Truck for Road Rescue

  • High Light

    heavy duty wrecker

    ,

    heavy wrecker trucks

  • Working Altitude
    0-4500 M
  • Fuel Type
    Diesel
  • Rated Power
    440 HP
  • Seats
    2 Seats Include Driver
  • Wind Force
    ≤8°
  • Product Name
    Heavy Duty Wrecker Truck
  • Place of Origin
    China
  • Brand Name
    KaiFan
  • Certification
    IQNET,ISO
  • Model Number
    KFM5071TQZ13P –SQZ1503PO
  • Minimum Order Quantity
    1 UNIT
  • Price
    Factory price, Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    3 months after sign contract
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    300 units/year

10×4 Volvo Chassis Diesel Fuel Heavy Duty Wrecker Truck for Road Rescue

D13 Engine model 2 persons Diesel Fuel Heavy-duty H Series volvo chassis                                  Road Wrecker 25% Max. Grade ability



1 Working Condition
1,Altitude: 0-4500m
2,Temperature: -35℃--+45℃
3,Relative humidity: 80%
4,Wind force: ≤8degree



2 Main Parameters

ItemsUnitValue
Lifting StructureRated Lifting weightkg15815
Max. Lifting weight of original placekg35000
Max. Lifting weight of full extension boomkg12500
Rated towing weightkg54000
Max. Designed towing weightkg80000
Effective length of boomm3670
Extension traveling of boomm1850
Folding angle of boom°90
Under lift StructureMax. Rated hanging weightkg40000
The height from hook to the groundmm13500
Max. Extension traveling of lifting boommm6000
Rotation angle°360
Numbers of winchpiece2
Rated pulling power of winchkg25000
Dia. Of steel cablemm26
Length of steel cablem45
Min. Speed of steel cablem/min4
Rotation angle°65

Vehicle
Parameters

External dimensionmm11342×2500×3710
Chassis model FM440 104RB
Drive 10×4
Axle basemm1995+2805+1400+1370
The whole weight of empty loadkg38055
Load of front axle of empty loadkg16885
Load of rear axle of empty loadkg21170
The whole weight of full loadkg54000
Load of front axle of full loadkg9000
Load of rear axle of full loadkg10000/13000
Wheel base (front/rear axle)mm2029/1875
Front suspensionmm1362
Rear suspensionmm1750
Approach angleº16.6
Departure angleº20
Min. Turning diameterm27.2
Min. Ground clearancemm306
Max. Speedkm/h90
Max. Grade ability%25
Gas consumption per one hundred miles(diesel oil)L42.9
Engine model-D13
Engine emissionL12.8
Rated powerkw/r/min440/324/1400~1800
Torquen·m/r/min2200/1050~1400
Fuel type Diesel
Standard of emission EN III
Tire size 315/80R22.5
Persons 2



3 Standard Equipments
1. VOLVO FM440 104RB

2. Main boom structure assembly

3. Vice boom assembly

4. Hanging hook assembly

5. Control structure assembly

6. Chain wheel and hanging assembly

7. Winch assembly (include winch clutch, impaction device)

8. Steel body assembly

9. Tool box assembly

10. Light stands assembly

11. Alarm device

12. Hydraulic system

13. Hydraulic system over voltage protection device

14. Electric system

15. PTO Warner

16. Combination lamps

17. Hydraulic duel rear outrigger assembly

18. Lifting assembly

19. Y wheel lift

20. Steel wire rope

21. Output of electronic device

22. Standard spare tire

23. Safety chains

24. Vulnerable parts attachment
