65kg Special Vehicles Portable Fire Pump Water Gun Nozzle Diameter φ19mm

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

65kg Special Vehicles Portable Fire Pump Water Gun Nozzle Diameter φ19mm

65kg Special Vehicles Portable Fire Pump Water Gun Nozzle Diameter φ19mm
65kg Special Vehicles Portable Fire Pump Water Gun Nozzle Diameter φ19mm 65kg Special Vehicles Portable Fire Pump Water Gun Nozzle Diameter φ19mm

Large Image :  65kg Special Vehicles Portable Fire Pump Water Gun Nozzle Diameter φ19mm

Product Details:
Place of Origin: China
Brand Name: Jindun
Certification: ISO
Model Number: JBQ5.5/10-K(BJ10A-K)
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Delivery Time: 3months
Payment Terms: T/T
Supply Ability: 300/year
Detailed Product Description
Dimension: 570×510×560mm Net Weight: 65kg
Highest Lift: 70m Rated Pressure: 0.55Mpa
Cylinders: Double Cylinder Water Pump: Single Stage
Flow Rated: 600L/min Suction Depth: 7m
High Light:

commercial vehicle

,

specialized vehicles

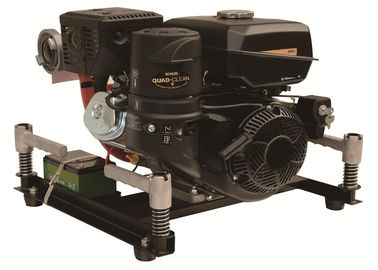

Water gun nozzle diameter φ19mm Middle pressure middle flow Portable fire pump 65kg weight





model: JBQ5.5/10-K(BJ10A-K)



Dimension 570×510×560mm
weight 65kg
Rated flow rate 600L/min
lift 70m
Rated pressure 0.55Mpa
Inlet pipe diameter Φ65mm
Outlet pipe diameter φ65mm
Water gun nozzle diameter φ19mm
Connection mode Inch pipe thread type
Maximum suction depth 7m
Water diversion time ≤15s
Startup mode Hand start, electric start
engine model Kohler CH440
Water pump Single stage


65kg Special Vehicles Portable Fire Pump Water Gun Nozzle Diameter φ19mm 0

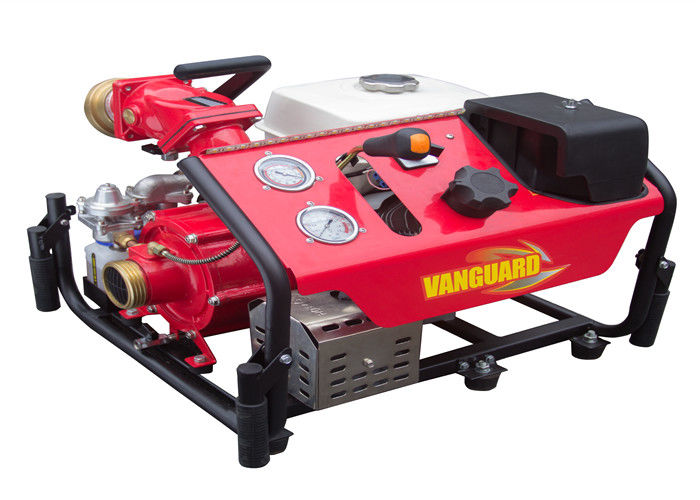

JBQ8/4.5-H High pressure middle flow Portable fire pump



Dimension 620x620x550mm
weight 60kg
Rated flow rate 600L/min
lift 90m
Rated pressure 0.55Mpa
Inlet pipe diameter Φ65mm
Outlet pipe diameter φ65mm
Water gun nozzle diameter φ19mm
Connection mode Inch pipe thread type
Maximum suction depth 7m
Water diversion time ≤15s
Startup mode Hand start, electric start
Engine model GX390
Water pump Two stage
