Middle Flow Special Vehicles Portable Diesel Fire Pump 7m Maximum Suction Depth

Middle Flow Special Vehicles Portable Diesel Fire Pump 7m Maximum Suction Depth

  • High Light

    commercial vehicle

    ,

    special operations vehicles

  • Dimension
    590×560×570mm
  • Net Weight
    ≤75kg
  • Highest Lift
    65m
  • Rated Pressure
    0.52Mpa
  • Cylinders
    Double Cylinder
  • Water Pump
    Single Stage
  • Flow Rated
    480L/min
  • Suction Depth
    7m
  • Place of Origin
    China
  • Brand Name
    Jindun
  • Certification
    ISO
  • Model Number
    JBC5.2/8-W
  • Minimum Order Quantity
    1
  • Price
    USD
  • Delivery Time
    3months
  • Payment Terms
    T/T
  • Supply Ability
    300/year

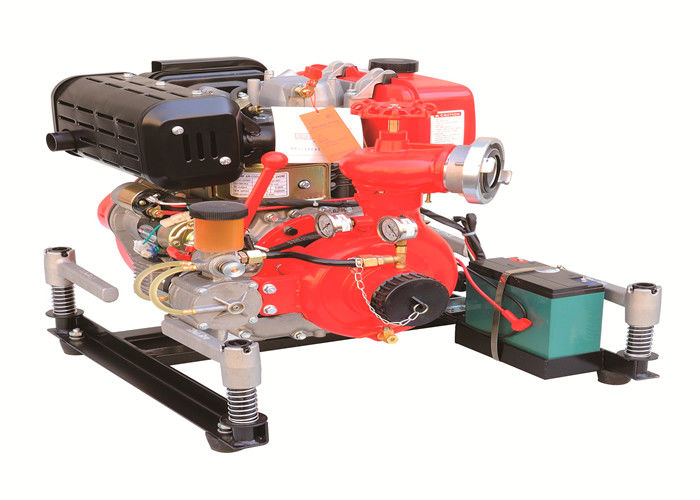

Middle Flow Special Vehicles Portable Diesel Fire Pump 7m Maximum Suction Depth

7M Maximum suction depth Low pressure middle flow Portable fire pump diesel engine 0.52Mpa







Dimension 590×560×570mm
weight ≤75kg
Rated flow rate 480L/min
lift 65m
Rated pressure 0.52Mpa
Inlet pipe diameter φ65mm
Outlet pipe diameter φ65mm
Water gun nozzle diameter φ19mm
Connection mode Threaded type
Maximum suction depth 7m
Water diversion time ≤20s
Startup mode Hand / electric start
Engine model 13HP,188FB
Water pump Single stage

 Middle Flow Special Vehicles Portable Diesel Fire Pump 7m Maximum Suction Depth 0

JBC4.0/7(BJ9B-W)Low pressure middle flow Portable fire pump

Dimension 590×560×570mm
weight ≤70kg
Rated flow rate 480L/min
lift 45m
Rated pressure 0.4Mpa
Inlet pipe diameter φ65mm
Outlet pipe diameter φ65mm
Nozzle diameter of water gun φ19mm
Connection mode Threaded type
Maximum suction depth 7m
Water diversion time ≤20s
Startup mode Hand / electric start
Engine model 11HP,182FE
Water pump Single stage
