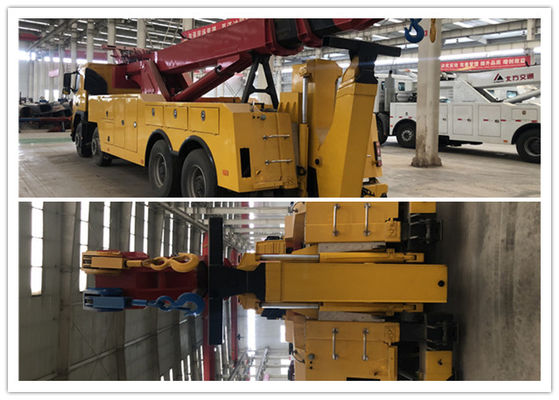

Control Structure Big Truck Wrecker 0 - 4500m Altitude 45 Meters Length Steel Cable

Control Structure Big Truck Wrecker 0 - 4500m Altitude 45 Meters Length Steel Cable
Control Structure Big Truck Wrecker 0 - 4500m Altitude 45 Meters Length Steel Cable Control Structure Big Truck Wrecker 0 - 4500m Altitude 45 Meters Length Steel Cable

Large Image :  Control Structure Big Truck Wrecker 0 - 4500m Altitude 45 Meters Length Steel Cable

Product Details:
Place of Origin: China
Brand Name: Young da
Certification: IQNET,ISO
Model Number: KFM5540TQZ–SQZ3554HV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Delivery Time: 3months
Payment Terms: T/T
Supply Ability: 300/year
Detailed Product Description
Altitude: 0-4500m Temperature: -35℃--+45℃
Grade Ability: 30% Persons: 2
Tire Size: 315/80R22.5 Rotation Angle: 360
High Light:

heavy duty wrecker

,

custom wrecker trucks

Rated pulling power of winch 25000kg VOLVO Road Wrecker 45m Length of steel cable



one. Working Condition

1,Altitude: 0-4500m

2,Temperature: -35℃--+45℃





two. Main Parameters

Items Unit Value
Lifting Structure Rated Lifting weight kg 15815
Max. Lifting weight of original place kg 35000
Max. Lifting weight of full extension boom kg 12500
Rated towing weight kg 54000
Max. Designed towing weight kg 80000
Effective length of boom m 3670
Extension traveling of boom m 1850
Folding angle of boom ° 90
Under lift Structure Max. Rated hanging weight kg 40000
The height from hook to the ground mm 13500
Max. Extension traveling of lifting boom mm 6000
Rotation angle ° 360
Numbers of winch piece 2
Rated pulling power of winch kg 25000
Dia. Of steel cable mm 26
Length of steel cable m 45
Min. Speed of steel cable m/min 4
Rotation angle ° 65


three. Standard Equipments

1. VOLVO FM440 104RB

2. Main boom structure assembly

3. Vice boom assembly

4. Hanging hook assembly

5. Control structure assembly

6. Chain wheel and hanging assembly

7. Winch assembly (include winch clutch, impaction device)



Control Structure Big Truck Wrecker 0 - 4500m Altitude 45 Meters Length Steel Cable 0
