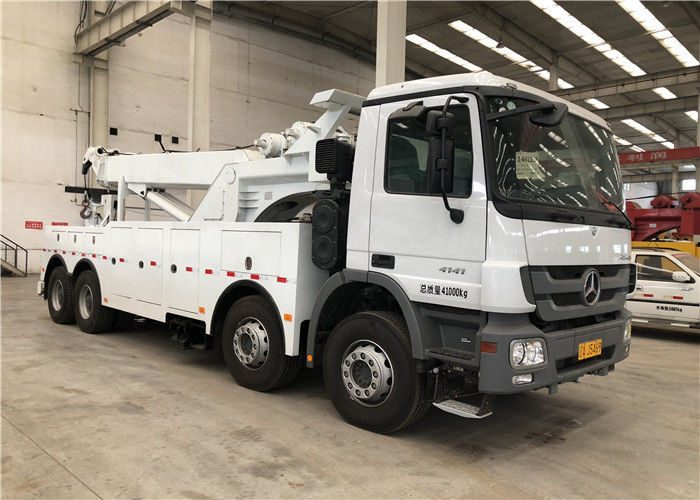

41000kg Towing Weight 2 Piece Winches Road Wrecker Truck 65 Rotation Angle

41000kg Towing Weight 2 Piece Winches Road Wrecker Truck 65 Rotation Angle

  • High Light

    heavy duty wrecker

    ,

    heavy wrecker trucks

  • Altitude
    0-4500m
  • Rated Lifting Weight
    13785kg
  • Rated Towing Weight
    41000kg
  • Certification
    ISO9001:2008, CE
  • Dimension
    10860×2500×3465
  • Warranty
    1 Year
  • Place of Origin
    CHINA
  • Brand Name
    YD
  • Certification
    ISO, CE
  • Model Number
    KFM5413TQZ
  • Minimum Order Quantity
    1 SET
  • Price
    USD
  • Packaging Details
    standard package in container
  • Delivery Time
    30 working days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    50 SETS PER MONTH

41000kg Towing Weight 2 Piece Winches Road Wrecker Truck 65 Rotation Angle

41000kg Towing Weight 2 Piece Winches Road Wrecker Truck 65 Rotation Angle



One. Main Parameters

Items Unit Value
Lifting Structure Rated Lifting weight kg 13785
Lifting weight of original place kg 16000
Max. Lifting weight of full extension boom kg 5000
Rated towing weight kg 41000
Max. Designed towing weight kg 60000
Effective length of boom mm 3350
Extension traveling of boom mm 1700
Folding angle of boom ° 90
Under lift Structure Max. Rated hanging weight kg 25000
The height from hook to the ground mm 13124
Extension traveling of lifting boom mm 6000
Turning angle ° 360
Numbers of winch piece 2
Rated pulling power of winch kg 15000×2
Dia. Of steel cable mm 22.4
Length of steel cable m 40
Rotation angle ° 65

Vehicle

Parameters

External dimension mm 10860×2500×3465
Chassis model   Actros4141
Axle base mm 1700+4600+1350
Drive   8×4
The whole weight of empty load kg 27085
Load of front axle of empty load kg 12505
Load of rear axle of empty load kg 14580
The whole weight of full load kg 41000
Load of front axle of full load kg 7500/7500
Load of rear axle of full load kg 26000
Wheel base (front/rear axle) mm 2035/1804
Front suspension mm 1440
Rear suspension mm 1065
Approach angle º 27
Departure angle º 15
Min. Ground clearance mm 345



 41000kg Towing Weight 2 Piece Winches Road Wrecker Truck 65 Rotation Angle 0

Two. Working Condition

1,Altitude: 0-4500m

2,Temperature: -35℃--+45℃

3,Relative humidity: 80%

4,Wind force: ≤8degree



Three. Working Range

KFM5413TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
