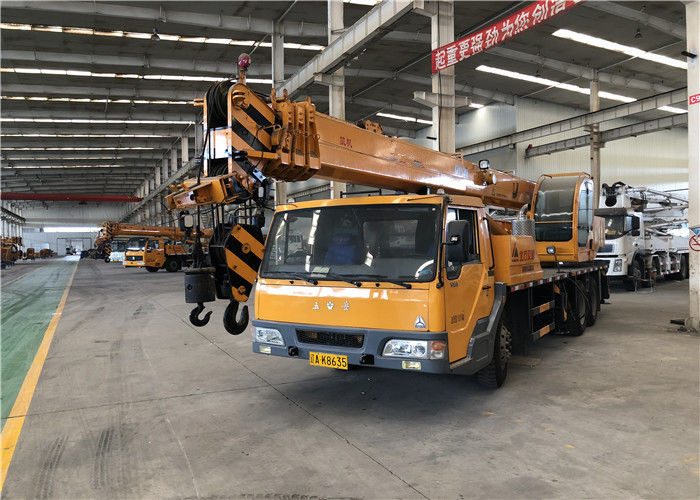

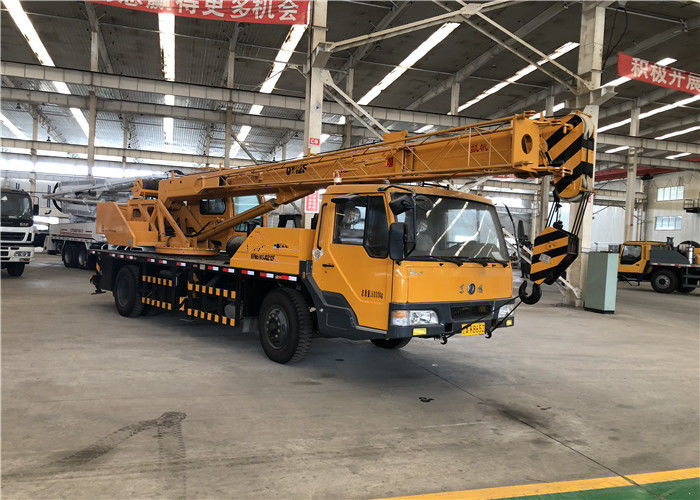

10.4 Ton Hydraulic Cargo Truck Crane with 4.31m X 4.2m Outrigger Span

10.4 Ton Hydraulic Cargo Truck Crane with 4.31m X 4.2m Outrigger Span

  • High Light

    truck mounted hydraulic crane

    ,

    truck bed mounted crane

  • Altitude
    0-4500m
  • Temperature
    -25℃--+45℃
  • Lifting Speed
    55m/min
  • Swing Speed
    0-3rpm
  • Wheelbase
    3.55m
  • Engine Power
    11KW
  • Vehicle Weight
    10.4 Tons
  • Product Name
    Hydraulic Cargo Truck Crane
  • Place of Origin
    China
  • Brand Name
    Jindun
  • Certification
    IQNET,ISO
  • Model Number
    KFM5115JQZ8F
  • Minimum Order Quantity
    1 UNIT
  • Price
    Factory price, Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    3 months after sign contract
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    300 units/year

10.4 Ton Hydraulic Cargo Truck Crane with 4.31m X 4.2m Outrigger Span

10.4 Ton Hydraulic Cargo Truck Crane with 4.31m X 4.2m Outrigger Span

Main specification

Parameter
Maximum lifting weight
100000kg
Outrigger span
4.31m*4.2m
Boom U type
6.5M*6 section
Truck crane size
9.65m*2.18m*3.2m
Maximum lifting height
34m
Electric engine power
11KW
Lifting speed
55m/min
Swing speed
0-3rpm
Diesel engine power
95KW
Travel speed
70km/h
wheelbase
3.55m
Big frame size
350*200*8mm
Big arm size
461*326mm
Machine overall weight
10.4T

Advantage

1, better performance
The layout of the whole machine is optimized, the main load-bearing members are more reasonable in force, and the lifting performance exceeds the same tonnage products in the industry.
The mature boom technology combining the inserted arm head, the embedded arm block and the special telescopic mechanism makes the boom expansion and contraction more stable and high reliability.
Optimized for force design, with new box legs, larger span, stronger stiffness and better stability.
2, the quality is more reliable
With the classic boom telescopic technology, the work is safer and more reliable.
Carefully build the most complete safety device system in the industry to ensure safe and reliable lifting operations.
Fully upgraded brake system, dual-circuit air pressure design, multiple systems to ensure the safety of the vehicle while driving.
The high rigidity of the turntable and frame structure is completely coordinated with the strength and rigidity.
The perfect combination of design and structural process manufacturing, complete automation of welding and higher reliability.
3, maintenance is easier
The new optimized design of pipeline routing, the layout is more scientific and reasonable, greatly shortening the pipeline disassembly time and reducing maintenance costs.
The electrical system is fully upgraded, and a number of electronic devices are available in optional configurations. All of them are equipped with anti-leakage connectors, which greatly extend the service life of components.
Adopt anti-corruption rope technology to improve the efficiency of lifting work, reduce labor intensity and extend the life of steel rope.
The carefully designed telescopic wire rope guiding and guarding device prevents the wire rope from being broken.
4, energy saving and more environmentally friendly
The electromechanical dual-purpose hydraulic system is more environmentally friendly and economical.
Adopting advanced machine matching technology, the design is more scientific, the mechanism loss is reduced, the service life of the whole machine is extended, and the residual value of the equipment is high.
