Main features:
1. Expand faster: Compared to other domestic and imported ladder trucks, with the fastest expansion rate;
2.Advanced technology: exclusive for rotating compass leveling technology in China, with features of a large adjustment range, short adjustment time, and reliable adjustment;
3. Performance and reliability: chassis, ladders, pumps, fire monitor and other major equipment are imported from other countries, environmental adaptability, lower failure rate;

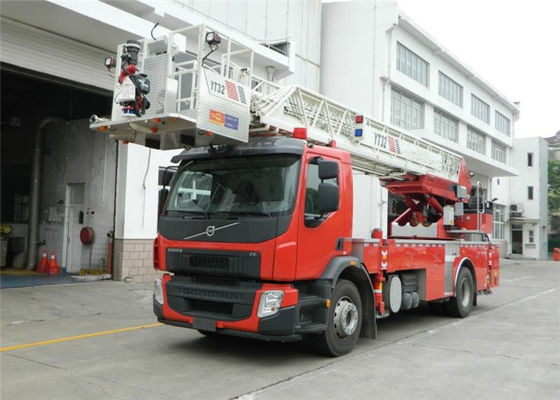

| Vehicle model | YT32 | ||||
| chassis | Chassis model | VOLVO FE300 | |||
| driving | 4×2 | ||||
| Wheelbase | 4745 mm | ||||
| engine | Euro V emission standard, water cool, electro control , diesel engine in line. | ||||
| Engine power |
221Kw/2100rpm
|
||||
| Generator battery | 12V x 2,100Ah | ||||
| cabin | 1+1 | ||||
| dimension:(L×W×H) | 10000×2500×3750mm | ||||
| Gross weight | 18000kg | ||||
| Max. running | ≥90km/h | ||||
| outrigger | structure | H style | |||
| longitudinal | 5500mm | ||||
| transverse | 6000mm | ||||
|
Foam Monitor head |
self made stainless steel foam monitor head | |
| Working cage |
nozzles of water spray curtain system to protect cage occupants from radiant heat,control is in cage, manual valve
|
|
|
Fire plumbing |
Down part:stainless pipe+aluminium pipe | |
|
Upper:5 ladder pipe, aluminium alloy seamless tube Soft connection pipe:stainless steel knitted wire soft tube |
||
|
Water coupling |
Water coupling | specification |
| Coupling from end of vehicle | 2XDN80 | |
| Coupling type:quick coupling or slow coupling | ||
| electric | turntable control: left side of turntable, comfortable chair | |
| The vehicle control type: touchable operating screen, computer control | ||
|
2 round alarm light on top of cab siren in cab visible reverse monitor preserved radio interface |
||
|
24V charger plug wind gauge in working cage overloading warning for working cage video monitor and disk video recording |
||
| Body frame | Step well ladder for climbing:each one for left and right side | |
| Body structure:aluminum alloy welding structure | ||
| Body coaming:sticking with aluminium alloy plate | ||
| Body platform/equipment box pump house top: oxidation antislip aluminium alloy plate | ||
| Equipment box/pump house/tool box:Aluminium roller shutter | ||
| Body color |
boom and fender is light white Cab and body frame is red |
|
