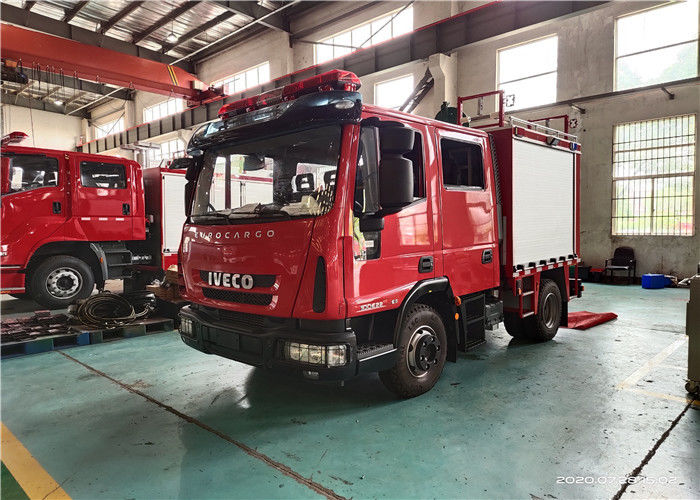

SS304 Material 4x2 Drive 160kW Power Military Water Tanker Fire Truck

SS304 Material 4x2 Drive 160kW Power Military Water Tanker Fire Truck

  • High Light

    4x2 Water Tanker Fire Truck

    ,

    160kW Water Tanker Fire Truck

    ,

    32L/S Fire Service Truck

  • Material
    Stainless Steel 304
  • Wheel Base
    2790mm
  • Water Capacity
    2200L
  • Foam Capacity
    500L
  • Engine Power
    160kW(217hp)/2700r/min
  • Seat
    2+3
  • Fire Pump Flow
    32L/s At 1.0MPa
  • Displacement
    5.88L
  • Key Words
    MIlitary Water Tanker Fire Truck
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    Jindun
  • Certification
    ISO9001/CCC
  • Model Number
    PM30Y
  • Minimum Order Quantity
    1 UNIT
  • Price
    Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    800 units per year

SS304 Material 4x2 Drive 160kW Power Military Water Tanker Fire Truck

Stainless Steel 304 Material 4x2 Drive 160kW Power Military Water Tanker Fire Truck with HALE Water Pump





Suction inlet 1×DN100 butterfly valve, electric and manual operation
Outside Suction inlet 1×DN125 suction coupling with stainless steel butterfly valve and lid cover, snap- type
Outlet 2×DN80 ordinary outlet with manual ball value, insertion-type
Pump outlet 10mm stainless steel ball valve, manual
Outside liquid inlet Use G1 1/2’’ manual ball valve and KY40 solenoglyphic tooth coupling

Chassis

Manufacturer FIAT IVECO
Model ML 100E22
Driving 4×2
Min. turning radius 5.2m
Min. ground clearance Front 169mm, rear 172mm
Chassis Net weight 10910Kg
Approach angle 18°
Departure angle 18°
Engine IVECO TECTOR 6, F4AE3681B*S
Max. authorized total mass 10000kg
Displacement 5.88L
Max. torque 680N•m/1200~2100r/min
Max. power 160kW (217HP)/2700r/min
Fuel tank 115L plastic fuel tank, 25L heating type urea tank, Recor oil-water separator with heating
Electric Accumulator 2×12V/110Ah, electric generator 28V/70A/1690W
Gearbox ZF 6S700 manual
Wheel base 2790mm
Steering Hydraulic power assisted
Front axle IVECO 5833
Rear axle IVECO 450721
Tyre 6 x Michelin 2x9.5R17.5 XYZ
Brake ABS system

Equipment layout principles

1, According to combat programming and combat development design

equipment integration

2, According to human body engineering principle design all kinds of equipment frames.

3, According to using logic and frequency of use place equipment

4, 1-2 action can take any equipment standing on the ground or pedal

               5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
