CCC RHD Foam 213KW Q235A Water Tanker Fire Truck

CCC RHD Foam 213KW Q235A Water Tanker Fire Truck

  • High Light

    Q235A Water Tanker Fire Truck

    ,

    213KW Water Tanker Fire Truck

    ,

    RHD Water Tanker Fire Truck

  • Material
    Q235A Steel
  • Flow
    6000L/M
  • Impeller Material
    Gunmetal
  • Power
    213KW
  • Priming Time
    ≤80s
  • Manufacturer
    US HALE
  • Foam Range
    ≥55m
  • Water Range
    ≥60m
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    Jindun
  • Certification
    ISO9001/CCC
  • Model Number
    PM120M
  • Minimum Order Quantity
    1UNIT
  • Price
    Negotiable
  • Delivery Time
    90days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram

CCC RHD Foam 213KW Q235A Water Tanker Fire Truck

Foam Proportioner Water Tank Fire Truck Fire Engine Q235A Steel & Aluminum Alloy Plate





4X2 drive, Right Hand Drive

Chassis weight: 5645Kg

Full total mass: 17600Kg

Drive Type: 4 × 2

  • Pump room (picture on the right)
  • Function switches:
  • Lighting switch
  • Priming switch
  • Tank inject switch and pilot light
  • Tank outlet switch and pilot light
  • Monitor jet switch and pilot light
  • Lighting lamp
  • Gauge: Pressure manometer
  • Vacuum gauge
  • Water-level gauge
  • Content gauge
  • Control for priming pump
  • Control for water tank suction valve
Side girder

Structure characteristics:

Uses the high quality steel welded together, between the two longitudinal beams, there are several beam connects to the longitudinal beams with equal strength. The side girder connect to installation parts with high strength bolt, ensure the original car girder stability and power equality, improve the service life of the girder, reduced the possibility of the distortion of the installation parts caused by the deformation.

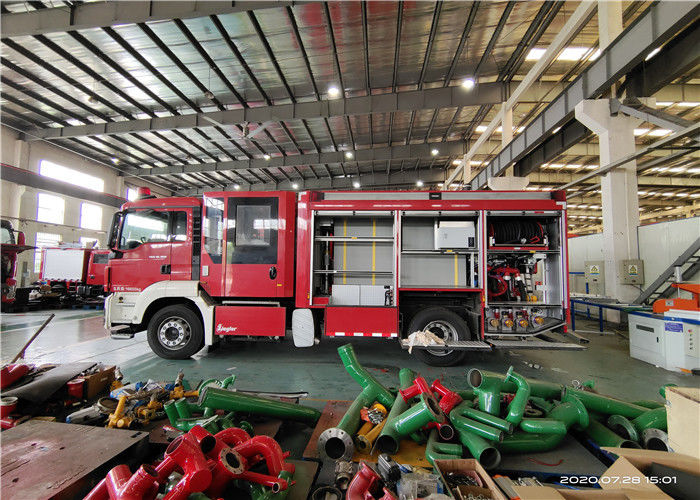

Equipment box and pump room

Material: Q235A steel & aluminum alloy.

Structure: Welded, the join-structure,skinned,bottom plate and interior plate adopts the anodized LF2 rust-prevention flat aluminum plate.

The door of equipment box and pump room: Using lightweight high quality aluminum alloy,with shutter,lightweight and reliable,the back door of the pump room adopts flap-up door for shading the weather and preventing falling objects.

internal structure:Inner frame adopts aluminum lap technology,to farthest improve space utilization and variability, equipment box can be configured all kinds of sliding brackets and the dragging plates, etc.,according to the requirements of customers for convenient accessing.

Pedal plate

Location: At the bottom of the shutter.

Material: Steel frame covered by aluminum alloy

decorative pattern plate

Structure: Adopt the gas springs plus shutter fasten, safe and Reliable, each petal plate bearing ≥150Kg.



Equipment layout principles

1, According to combat programming and combat development design

equipment integration

2, According to human body engineering principle design all kinds of equipment frames.

3, According to using logic and frequency of use place equipment

4, 1-2 action can take any equipment standing on the ground or pedal

5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
