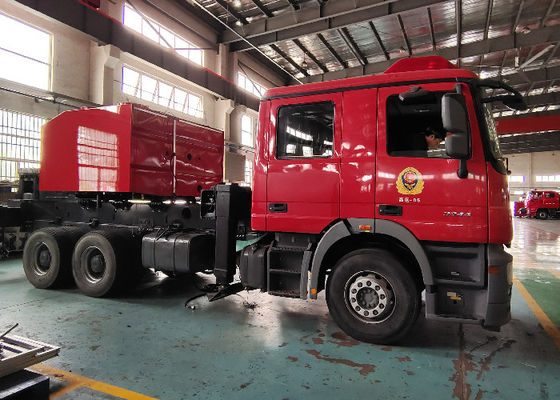

Mercedes-Ben Chassis 30.7 Meter Height Pneumatic Locking Aerial Ladder Fire Truck
-
Highlight
30.7m Aerial Ladder Fire Truck
,177KW Aerial Ladder Fire Truck
,1440mm Suspension Ladder Fire Truck
-
Drive4x2
-
Max Height30.7m
-
Ladder StructureFour Section
-
Power177KW
-
Full Extension30.05m
-
Max Speed100Km/h
-
Crew Number6
-
Dimensions10720X2500X4000mm
-
Product Name30.7m Aerial Ladder Fire Truck
-
Place of OriginSHANGHAI,CHINA
-
Brand NameJindun
-
CertificationISO9001/CCC
-
Model NumberYT30
-
Minimum Order Quantity1UNIT
-
PriceNegotiable
-
Packaging DetailsExporting standard package or customized packing
-
Delivery Time90 days after sign contract
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability350 units/year
Mercedes-Ben Chassis 30.7 Meter Height Pneumatic Locking Aerial Ladder Fire Truck
Mercedes-Ben Chassis 30.7 Meter Height Pneumatic Locking Aerial Ladder Fire Truck
| Model | Mercedes Benz G240-16, all synchronous transmission |
| Speed ratio | 16 forward gear, 2 reverse gear |
| Shift type | Mercedes Benz Telligent® intelligent shift system |
| Water pump PTO | Mercedes Benz NMV200 engine full power PTO |
| Speed ratio | 1.48 |
| Maximum output torque | 1500Nm |
| Rotation | counter clockwise (same as the engine rotation direction) |
| Output position | the top of the middle, 120mm tooth flange output |
| Other | for long time operation |
| Oil pump PTO | Mercedes Benz MB1b gearbox PTO |
| Speed ratio | 1.24 |
| Maximum output torque | 700Nm |
| Rotation | counter clockwise (same as the engine rotation direction) |
| Output position | at 4 o'clock direction, 100mm tooth flange output |
| Other | for long time operation |
Dimension
| Item | unit | parameter |
| Dimensions (length x width x height) | mm | 10720×2500×4000 |
| Front suspension | mm | 1440 |
| Wheelbase | mm | 4500+1350 |
| Rear suspension | mm | 2950 |
| Extension | mm | 250 |
| Wheel distance | mm | Front 2050 rear 1800 |
Ladder performance
| Item | unit | parameter |
| Ladder section number | 4 | |
| Ladder length | ||
| Full contraction | m | 9.65 |
| Full extension | m | 30.05 |
| Stand up | ◦ | -10~75 |
| angle of rotation | ◦ | 360 |
| Max height | m | 30.7 |
| Maximum amplitude | m | 18.2 |
| Lifter load | N | 1800 |
| Working bucket load | N | 4000 |
Steering system
- Mercedes Benz 6/LS LS 8 steering device, hydraulic power.
- Steering oil level monitoring and warning.
- Multi function steering wheel, height and angle adjustable, pneumatic locking.
Brake system
- Benz Telligent® intelligent braking system,
- With ABS (ABS) function and Acceleration Skid control (ASR) function.
- Front and rear disc brake.
- Double loop compressed air brake, constant brake pressure of 10 bar.
- Auxiliary brake system and exhaust brake system for enginenormal open valve.
- Heated type long-actingcompressed air dryer.
- In slope starting auxiliary function.
- Brake pipe leakage protection (hand brake release device).
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
