Cylinder Fecal Tanker RHD Vacuum Sewage Suction Truck

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

Cylinder Fecal Tanker RHD Vacuum Sewage Suction Truck


Large Image :  Cylinder Fecal Tanker RHD Vacuum Sewage Suction Truck

Product Details:
Place of Origin: CHINA
Brand Name: ISUZU
Certification: ISO
Model Number: 5253GXWD
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD
Delivery Time: 2 MONTHS
Supply Ability: 500 UNITS PER YEAR
Detailed Product Description
Condition: New Steering: LHD,RHD
Type: Convertible Fuel: Diesel
Made In: China Gear Box: Manual
Color: Customer's Requirement Transmission Type: Manual
Emission Standard: Euro 3,Euro 4,Euro 2
High Light:

RHD Vacuum Sewage Suction Truck


5000L Tanker Suction Tanker Truck


ISO Sewage Suction Truck

        Vacuum sewage suction truck Isuzu (also called vacuum suction truck, sewage suction truck, sewage vacuum truck, waste vacuum tanker, sewer truck, vacuum tank truck, cesspit emptier, gully emptier etc.) This vacuum suction truck is mainly used to suck, transport, unload, and load sewage and sludge existing in the sewer lines and rainwater wells, and it can also be used to suck and transport wastewater, industrial waste oil, and sewage in large factories. Furthermore, sometimes it can even be used to dredge and clean small watercourses.

It is mainly composed of chassis, tank, hydraulic system, high-pressure system,and electrical system.

regarding Sewage Suction Trucks with 270 degrees rotating arm,this truck adds a rotating arm to the conventional suction truck. The arm can be rotated by 270 degrees. In a narrow working area, No need to remove the position of the truck, just adjust the angle of the rotating arm. So this sepcial sewage suction truck is more convenient for the working.

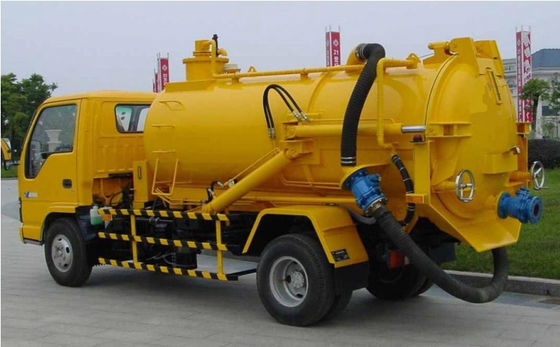

Cylinder Fecal Tanker RHD Vacuum Sewage Suction Truck 0
Features:---- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.
Vehicle   Sewage suction truck
Overall dimensions mm 6880x2100x2500
Septic tank m3 5
GVW kg Appro×8275
Curb weight   Appro×4450
Loading   Appro×3695
Wheel base mm 3800
Front/Rear overhang   1030/1950
Approach/departure angle ° 20/14
Max speed km/h 90
Standard configuration 1. Septic tank volume 5000L.
  2. Tank thickness : 5mm carbon steel.
  3. Looking sewage window.
  4. Self flow exit.
  5. Cleaning device.
  6. Fecal suction pipe 5m.
  7. Vacuum pump.
  8. Oil water separator, overflow valv.
Chassis Parameter
Cabin Single row cabin, no air conditioner, power steering, 2 passengers.
Drive type 4×2
  Model : CY4102-E3C, 120hp
  Fuel type : diesel.
  Displacement : 3856ml
  Emission standard : Euro 3
Transmission 5-speed, manual
Tire model 8.25-16
No.of tire 6pcs
