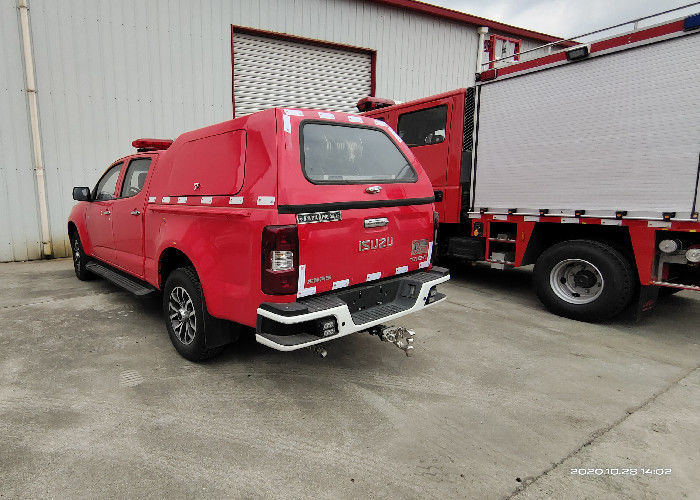

2780ml Displacement 5 Gears 3600rpm Dry Powder Fire Truck

2780ml Displacement 5 Gears 3600rpm Dry Powder Fire Truck

  • High Light

    3600rpm Dry Powder Fire Truck

    ,

    2780ml Displacement Fire Truck

    ,

    30m Hose Reel Fire Truck

  • Seat
    2+3
  • Hose Reel
    30m
  • Engine
    Commins
  • Max. HP
    161
  • Pressure
    15MPa
  • Tyre Type
    245/70R16
  • Cylinders
    4
  • Displacement
    2780ml
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    JD
  • Certification
    ISO9001/CCC
  • Model Number
    PW15
  • Minimum Order Quantity
    1UNIT
  • Price
    Negotiable
  • Delivery Time
    90days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram

2780ml Displacement 5 Gears 3600rpm Dry Powder Fire Truck

Dry powder fire extinguisher 2kg Air Intercool Pickup Fire Truck Water Mist System





⑵ Engine
Engine model: Commins ISF2.8s4161P
Engine type: 4 cylinders, pressuring air intercool, EGR+DOC
Max. power rotate speed (rpm): 3600
Max. torque rotate speed (rpm): 1800-3000
Max. HP: 161
Displacement mL: 2780
Cylinders: 4
Gears: 5
Fuel type: Diesel
Emission standard: China 4
Tyre type: 245/70R16

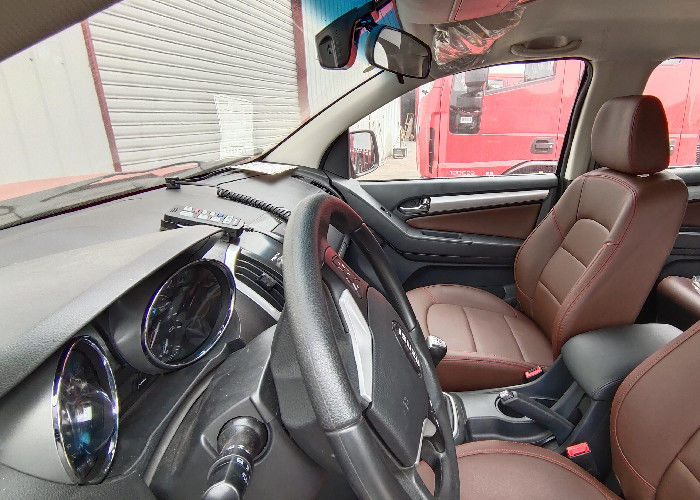

(3)Cab
Structure Original cab
Seat 1+1+3
Equipment operation board, siren
(4)Storage compartment
Manufacturer Shanghai Jindun
Material aluminium alloy
Structure The inner frame is made of aluminium alloy, and checkered plate
Inner structure Maximize the space utilization and variability
Seal Mechanical seal
Water tank
Steel-made tank capacity 300L
Storage apartment overall 1500X1500X1050mm

⑻High pressure water mist fire fighting unit:

Model:JYCC1515E

Pressure:15MPa

Flow rate:15L/min

⑽Painting

Bright red:body

Overall technical requirements

All operating switch instrument equipment and vehicles have the name plate & logo compliance with Requirements

The vehicle performance in accordance with GB7956 Fire performance requirements and test methods for vehicle

Foam tank in accordance with GA39.5-92 Foam fire truck technical conditions

The vehicle appearance is nice, flatness in accordance with GA39.5-92 ”Foam fire truck technical conditions”

All the parts are welded firmly, Grind after weld.
