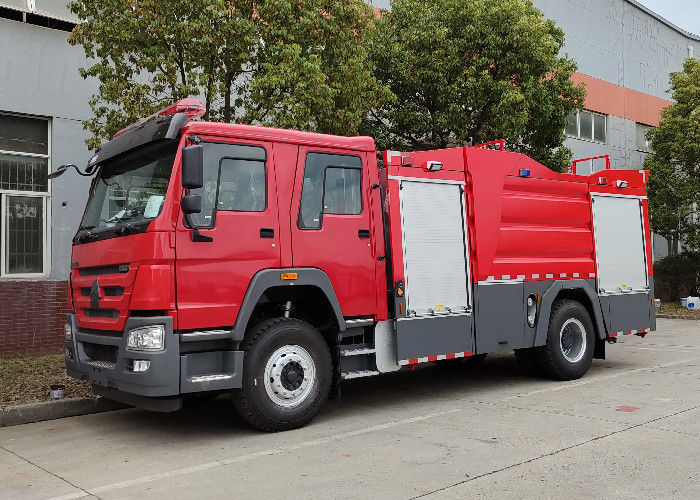

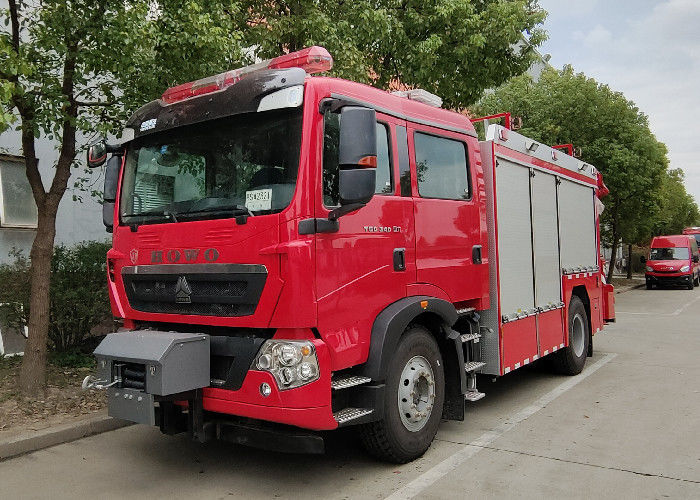

ISO9001 80L/S Fire Pump 4x2 Drive Water Foam Fire Truck with Two Row Cab
Fire pump
| Manufacturer | Rosenbauer |
| Model | R600 |
| Flow | 90L/s |
| Pressure | 1.0MPa |
| Water diversion | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤80s |
| Auto ring pump foam | PH48x2 |
| Type | Manual |
| Mixing ratio | 3%, 6% |
Pipeline
| Outlet pipeline |
2×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet |
1×DN150 suction coupling 1×DN150 pneumatic butterfly valve |
| Monitor pipeline |
1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Pump drive system | NMV200 |
| Drive shaft | High balance precision |
Dry powder tank
Dry powder filling capacity: 500Kg
Working pressure: 1.2 ~ 1.4MPa
Dry powder tank is a pressure vessel which is mainly welded by Q345R material. It is made of feeding powder port, discharging powder port, nitrogen delivery pipe and discharge powder tube, tank nitrogen delivery pipe is a ring shape which is equipped with multiple intake valves, so that gas and powder can mixing uniformly, with fluidized state. The design of intake valve makes dry powder be inaccessible to nitrogen gas delivery pipe.
All cylinders are placed in a bottle rack to supply gas for dry powder tank. Nitrogen cylinder group is consisting of nitrogen cylinder, bottle valve, high pressure gauge, air inflation connection, high pressure ball valves and other components.
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
Our products are sold all over the world, you can rest assured.
